Houston, Texas, July 26, 2022 — The Houston Livestock Show and Rodeo returned for a 90th anniversary celebration this year following a private event in 2021, due to the coronavirus pandemic. The largest livestock show and rodeo in the world, this year attracting 2.4 million attendees, the event also presented 21 consecutive nights of concert performances, all captured through a Solid State Logic System T networked audio production console and fed from the stage to the music control room via a range of SSL digital transport solutions.

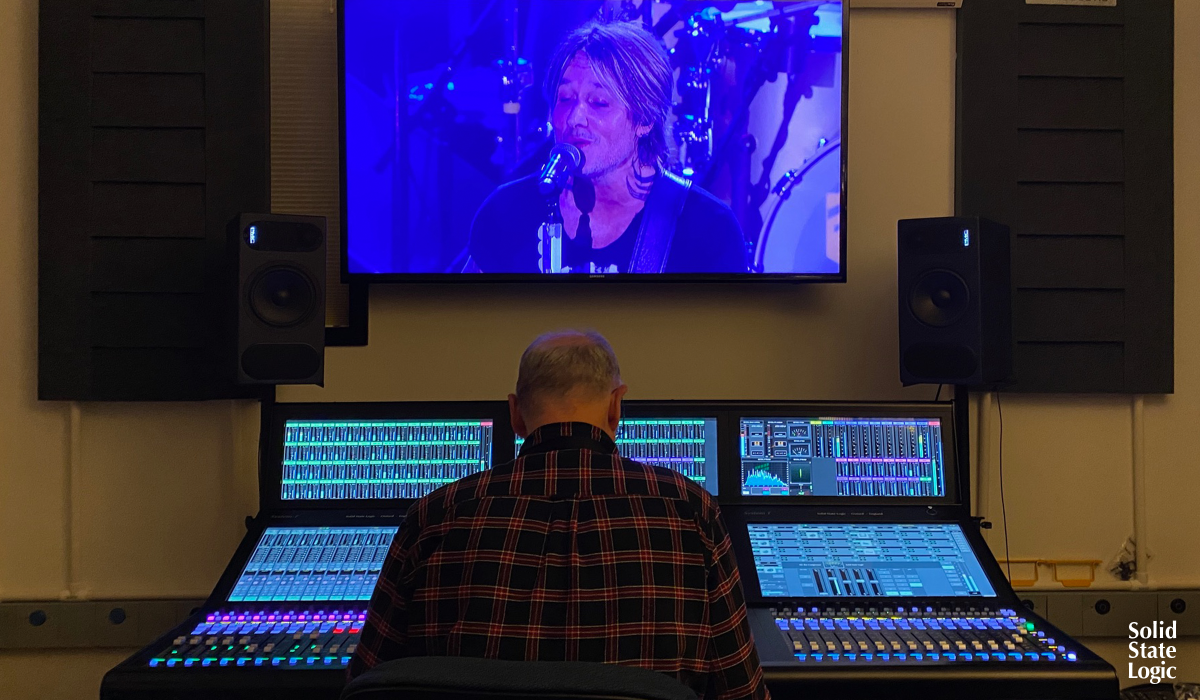

The SSL System T S500-48 console, powered by a TE2 Tempest Engine that supports up to 800 input and output paths with processing, is a new addition to the audio production setup for the rodeo, which takes place over three weeks across multiple indoor venues and outdoor locations at NRG Park in Houston. The Dante-based System T was installed in a music control room near the NRG Stadium, where the concerts are staged, shortly before this year’s events.



System T S500: Bountiful networking options

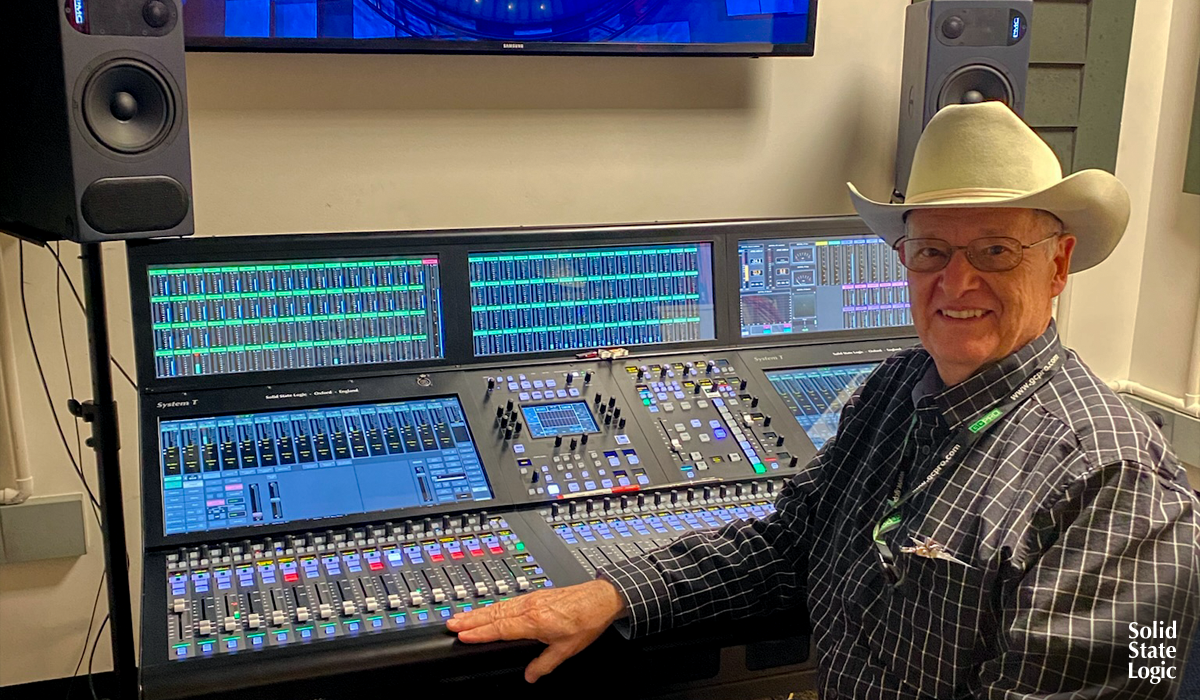

Malcolm Harper, owner and operator of Reelsound Recording, a Texas-based mobile audio recording service, was at the event for his 28th time this year to mix shows for each performer. “Solid State Logic’s System T S500 gave me every option to interface audio from each band with analog mic inputs, MADI Bridge and the SRC Dante units. The on-board effects and processing covered all my needs with the excellent sound SSL is known for,” Harper says.

Each year, Harper captures the concert performances to a multitrack recording system for the Rodeo's archive. He additionally generates a stereo mix that is fed to the broadcast control room near NRG Stadium. From there, it is also distributed across the park to locations such as the NRG Center, NRG Arena, livestock area, shopping and dining areas and other public spaces.





System T S500: Bountiful networking options

Malcolm Harper, owner and operator of Reelsound Recording, a Texas-based mobile audio recording service, was at the event for his 28th time this year to mix shows for each performer. “Solid State Logic’s System T S500 gave me every option to interface audio from each band with analog mic inputs, MADI Bridge and the SRC Dante units. The on-board effects and processing covered all my needs with the excellent sound SSL is known for,” Harper says.

Each year, Harper captures the concert performances to a multitrack recording system for the Rodeo's archive. He additionally generates a stereo mix that is fed to the broadcast control room near NRG Stadium. From there, it is also distributed across the park to locations such as the NRG Center, NRG Arena, livestock area, shopping and dining areas and other public spaces.



The ultimate in flexibility

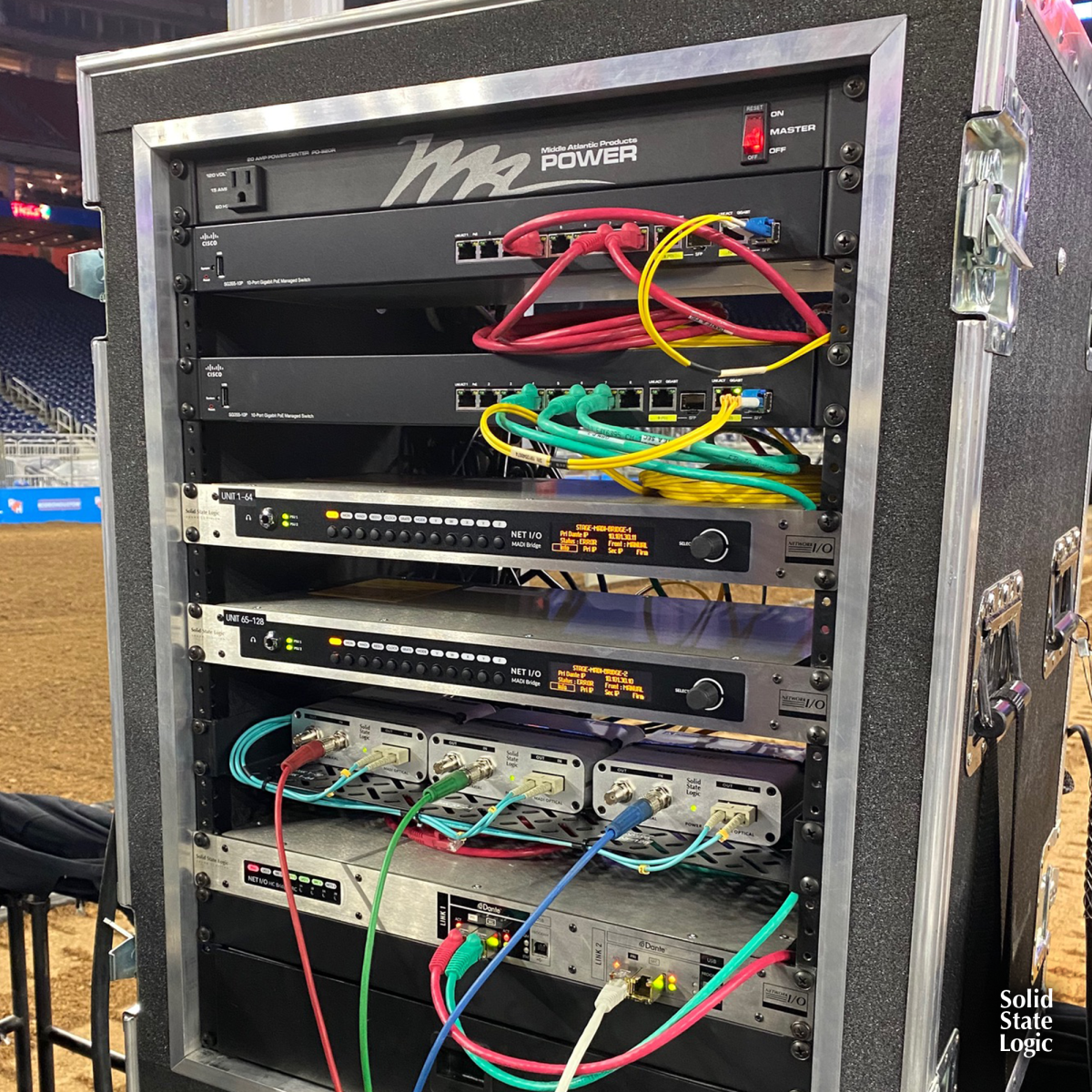

“Part of the challenge is being ready for anything,” says George Horton, SSL’s Vice President, Western Region. “We don’t know what brand of console artists are going to come with, or what sample rate or flavor of split they’re going to provide.” To accommodate any eventuality, he says, SSL supplied several units from the company’s Network I/O line of products, which were housed in a rack at the side of the stage next to the monitor mix position and fed the System T over a single mode fiber link.

Two Net I/O MADI Bridge devices, with built-in sample rate conversion, were available to each accept 64 channels of 48 kHz audio, supporting a total of 128 inputs. Each MADI Bridge could alternatively take in two 32-channel streams at 96 kHz and combine them into a single 64-channel 48 kHz Dante stream, between them handling 128 channels of 96 kHz MADI if required, Horton says.

“We also provided an HC Bridge SRC, an optically-isolated Dante bridge. If someone came in with a Dante split, we could take up to 256 Dante channels at 48k or 96k,” he says.


As an analog option, Horton continues, “There was a 64-channel traditional copper split that was part of the umbilical from the stage to a rack room in the stadium. There, we had three SSL SB 32.24 stageboxes handling 96 mic/line inputs.”

Harper and the SSL team on-site during setup built a 128-channel template for the System T to accommodate 96 channels from the artist with the remainder available for various other inputs and feeds, believing that would cover any eventuality. But during the setup for John Pardi’s show, Horton says, “Malcolm called and said, ‘They’ve got 113 MADI sources. What do we do?’”

System T is built on a multi-core processor with an open architecture, rather than a more typical FPGA or SHARC-based design, allowing a user to reconfigure the console according to the project’s demands. The platform also includes TeamViewer remote control software integration. “So one of our support engineers remotely logged into the system, quickly rebuilt the template and Malcolm did the show without any problems,” Horton reports.




Top flight production in Houston

“The crew that runs this have been doing this for years,” Horton says of the team behind the broadcast. “It’s so well organized and professional. They do a superb job.”

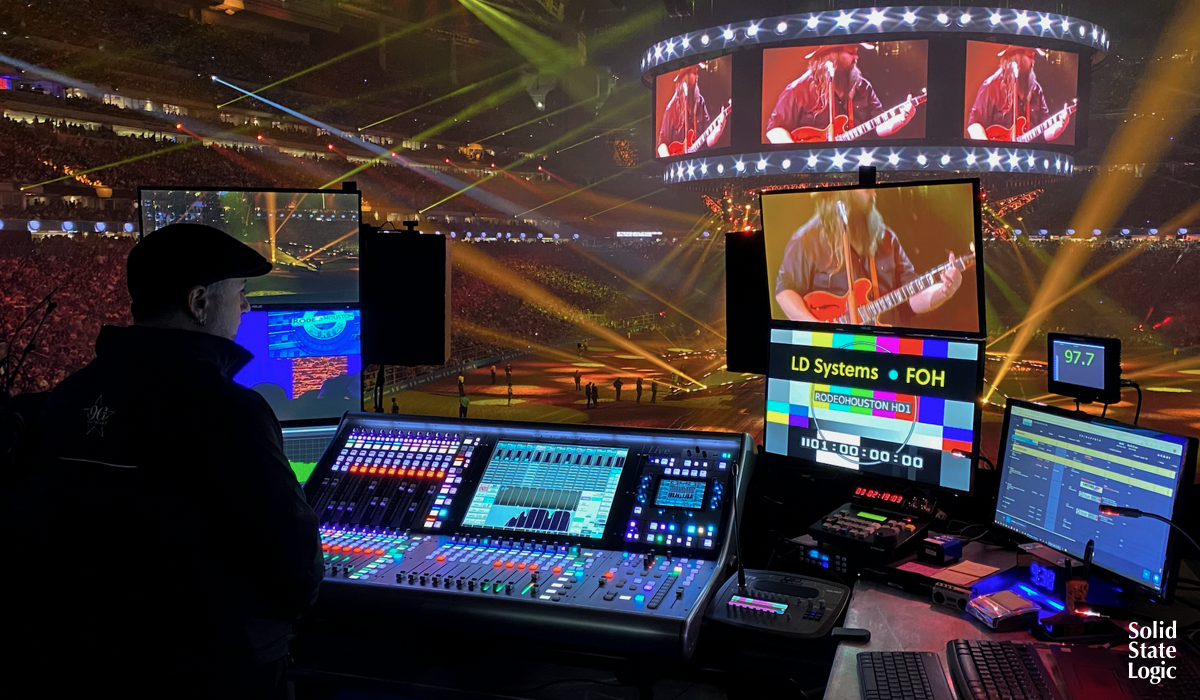

There was one final piece of SSL equipment on-site at NRG Stadium, Horton says. Houston-based live event production company LD Systems, a longtime technology partner with the Rodeo, annually supplies an SSL Live mixing console as part of its audio production for the sound elements specific to the rodeo competitions. The audio crew for each night’s performer additionally provided a mix from their own control equipment to the L550 — which LD Systems upgraded last year to an L550 Plus — and that in turn fed the matrix out to the PA system and to other public areas.
