California, US - Heavy Metal band Avenged Sevenfold has been busy with its latest world arena tour, following the release of the group's most recent album, The Stage. Accomplished Front of House engineer Bob Strakele - also known for his work with The War on Drugs, Awolnation, Papa Roach, and James, amongst others - has been with them at every stop, and chose the Solid State Logic L500 Plus live console for mixing duties. Audio kit on the tour has been supplied by Solotech.

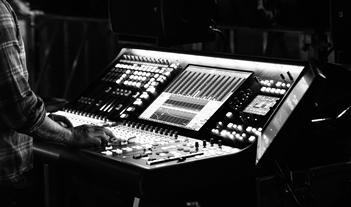

Hands-on Mixing. (photo by Rafa Alcantara)

Hands-on Mixing. (photo by Rafa Alcantara)

The simplicity of Dante AoIP networking was important to us, and the fact that it is now so widely adopted, with so many other devices that can be connected together... We certainly trust it.
Alex Blanding

Valuable Input

On this tour, Strakele has around 48 inputs from stage, with about 23 of those accounted for on the drum kit. The rest of the set includes bass, two electric guitars, two acoustics, plus five vocal mics. According to Strakele, the main sonic challenge arises from the sheer size of the tour venues, so clarity is a priority: "With double kick drums and blazing fast songs, it might be hard to keep it punchy - keep it together... So I'm using a lot of EQ to make things pop out, though the SSL EQ is amazingly musical and to me it doesn't sound 'EQ'd', even with some wild curves."

One of the big features of the console for Strakele was the Stem group - a type of audio path that you can mix to like an auxiliary, and that can be 'fully processed', with all the dynamics, EQ, FX, and routing that's available to an input channel. "I've always been a studio engineer and a live engineer, so the Stem Group was a game-changer for me,” he says. “I can funnel several things into one stem, process it the way I want to, then send it somewhere else and process it further. This allows me to do what I do in the studio with a patchbay, inside the console.”

Creative Routing

For Avenged Sevenfold, Strakele mixes all four microphones on the two kick drums from their input channels into a single Stem Group. "I do the same with the Toms," he continues. "and the same with the overheads. Then I send those three Stems into two further Stems - a dry drum group and a crushed parallel group that I use an old outboard compressor on.

"The Bass uses three inputs: clean, dirty, and amp, and again I mix them all to a single stem so I can EQ and compress them as one."

With this hierarchical routing through the stems of the L500, Strakele can make creative choices about gain structure and drive through the console architecture in real time during the show. "Depending on what I'm trying to accomplish, I'm either controlling the Stem with a VCA or I'm controlling the channels with a VCA and driving into the Stem.

"If I'm controlling the channels, the more I push the VCA, the harder it hits the Stem, and the Stem processing will react differently. On an aggressive song, for example, it means I can push into the stem compressor harder and add a lot of excitement at the right times without getting louder; or for slower songs I can back off and mix with the Stems... it allows me to have more dynamics without getting too far into automation or changing the way I'm processing the channels."

Fast FX

Aside from a couple of very particular outboard rack units, Strakele mostly uses the console's internal FX rack for additional processing, including his main reverbs. The L500 has a capacity of up to 96 FX instances chosen from a range of around 50 algorithms. "On my return layer I mix manually for whatever I'm feeling at the time... There are a couple of occasional 'big hits' that I set up on Auxes and then open using the console's user defined keys."

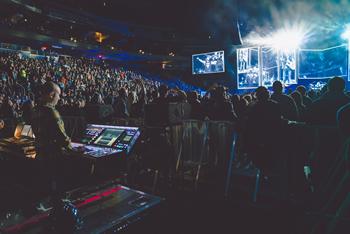

Avenged Sevenfold, from FOH. (photo by Rafa Alcantara)

Avenged Sevenfold, from FOH. (photo by Rafa Alcantara)

He assigns the user keys to tempo taps and to mute/unmutes for 'zeroed' effects returns. In this way he can catch a single word, part of a word, or a single drum hit with an additional effect.

Hands-On Mixing

The combination of these strategies means that Strakele can mix the way he likes to, which is hands-on: "It's the part of the day I look forward to the most," he says. "...I don't want to just sit there and press 'Next'. for each song.

"Avenged Sevenfold is a rock band, so my job is to make it as exciting and as dynamic as I can. The way I'm using the console allows me to make it dynamic - even it's simply a change in the tonality.

"Sometimes you want something slow and squishy, sometimes you want something really pumping, and sometimes you need it to be transparent. I can do all of those with this desk, which I have honestly never been able to do before with a live console. I didn't even think about it until I started experimenting with it and diving deeper and deeper into the console... It's great... I love it."
