Denmark - Denmark’s publicly funded broadcaster DR (Danish Broadcasting Corporation) operates four FM and eight DAB radio stations, and six television channels, as well and online and streaming media services. The broadcaster has installed SSL System T networked audio production systems into its main news studios, together with an SSL Network I/O-based redundant Dante infrastructure, demonstrating the Broadcaster’s commitment to a networked AoIP future.

System Spec

The System T installation includes two identical systems in Studios 13 and 14, each with its own Tempest Audio Engines, 48-fader main Control Room control surfaces, plus T-SOLSA (PC-based control) and Remote Fader Panels in the Production Control Rooms. Studio analogue I/O is supplied by SSL Alpha-Link Live R (Analogue, AES, MADI) and SSL Network I/O SB 8.8 (Mic, Line, GPIO), while Machine Room facilities include Network I/O SDI-MADI and MADI Bridge units.

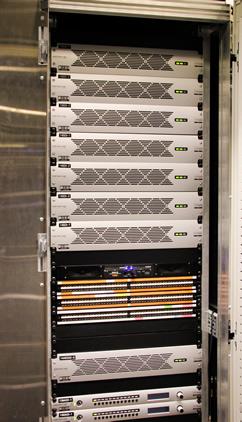

An SSL Network I/O Rack at DR

An SSL Network I/O Rack at DR

Another two studios - 12 and 15 are also connected to the Dante network via SSL Alpha-Link LIVE-R, SB 8.8 and MADI-Bridge hardware.

The installation includes PSU redundancy throughout, full Dante network redundancy, and OCP (Optimal Core Processing) network redundancy with two Dante HC cards in each Tempest Engine (1040 x 1040 bi-directional channels per Engine).

On Air 24/7

Both System Ts are running 24 hours a day, seven days a week, and 365 days per year. They're a core part of DR's breaking news transmissions as well as regular broadcasts on the DR1 and DR2 TV channels, which include four main programmes a day on DR1, and three programmes a day on DR2, plus additional political coverage and so on. Those control rooms are also used for larger broadcast events, such as mixing the Olympics coverage in 5.1.

The systems are responsible for mixing all master broadcast outputs, as well as all in-ear feeds, studio PA, and mix minus for live feeds. In a basic stereo news configuration at DR, each System T is using about 300 processed DSP paths, including 82 mono channels, 56 stereo channels, stems, auxes, mix-minus' and masters. though each Tempest Engine is capable of running over 800 paths each, so there is plenty of scope for even the most demanding productions. There is also extensive integration with the Studio's Riedel intercomm system.

Sound for short programmes are run entirely with Viz Mosart production automation control, and with System T’s Dialogue AutoMix functionality, while the longer programmes have Engineers at the consoles.
