Expanders

Scalable solution for users who require more faders in their workflow

More faders for your fingers

All SSL Live consoles can be expanded with the addition of two different hardware control options. Expanders and Remote Tiles provide a quickly scalable solution for SSL Live users who require more faders in their workflow.

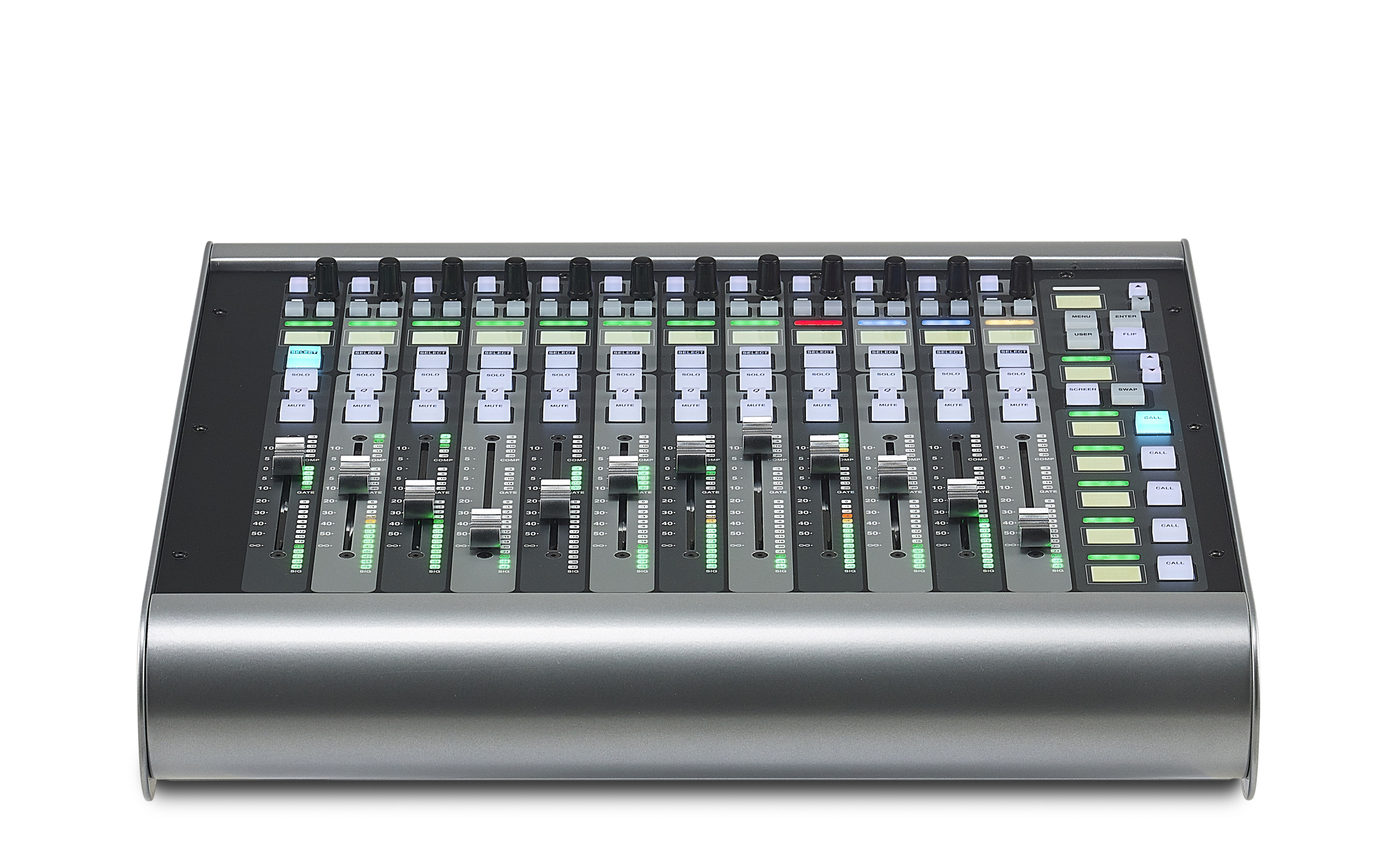

SSL Live. Remote Tile

The SSL Live Remote Tile is a self-contained 12-fader extension for any console in the Live range. It features a Fader Tile identical in operation to those found within the consoles and requires just USB and IEC mains connections to function. Up to two Remote Tiles can be connected to each console. A rotary switch sets the ID of each Remote Tile. VESA mounting points are also provided on the underside of the Remote Tile for securely mounting to heavy duty VESA arms or furniture. The Remote Tile can be used to expand the capabilities of all SSL Live console. It could add more faders to an L100, or create a very large console configuration when paired with an L550.

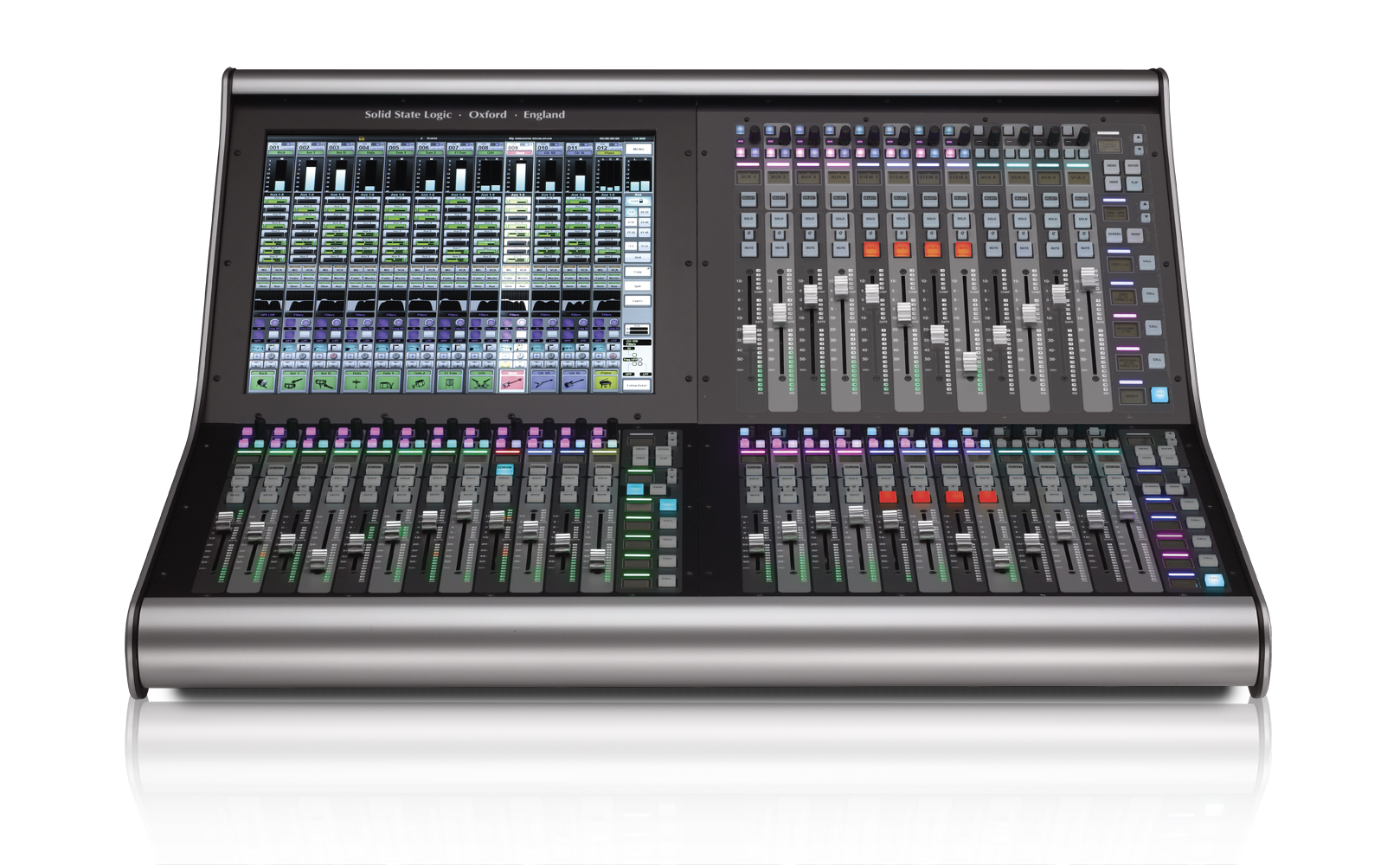

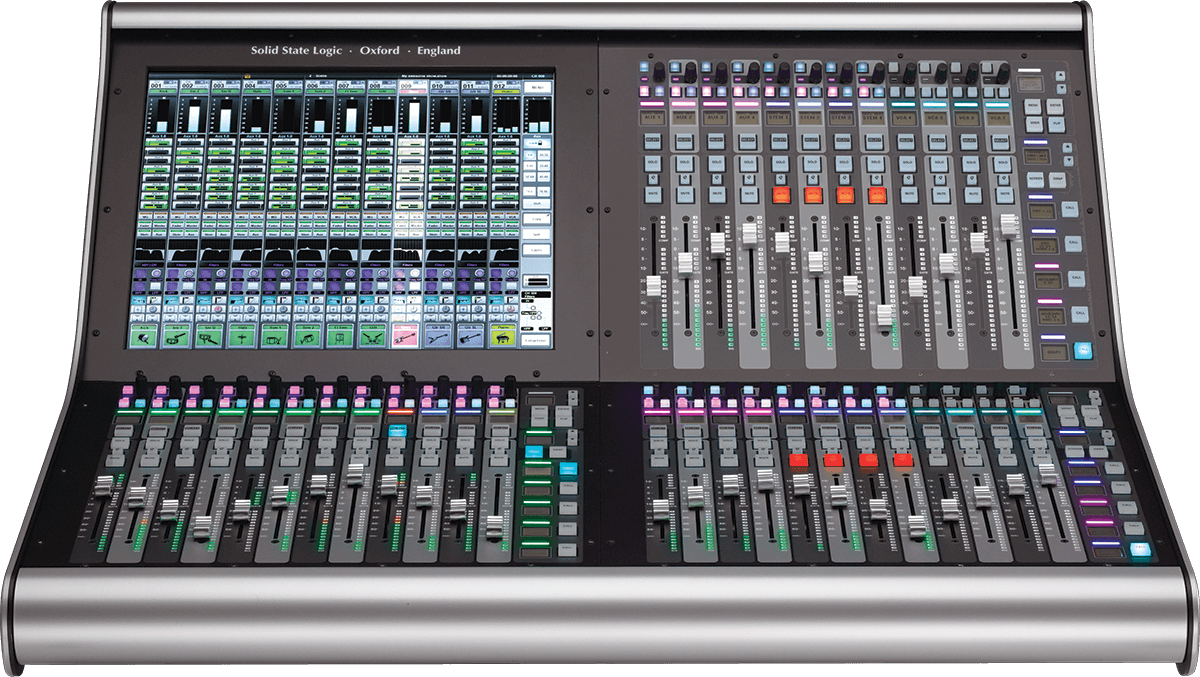

SSL Live. Remote Expander

The SSL Live Remote Expander provides additional remote control options for SSL L550 or L300 Live consoles and can be located next to the main console or remotely using a standard Ethernet connection. Each Remote Expander features 24 or 36 faders and the same familiar 19" multi-touch screen interface used in the rest of the SSL Live console range.

Up to two Remote Expanders may be connected to an L550 or L350 console, providing a total of up to 110 faders for single or multi-operator applications. Control surface layers and banks are independently configurable for each console and Remote Expander in a system.

Each Remote Expander features dual redundant power supplies and support for an additional external screen. The Remote Expander can also be connected to a console in parallel with SOLSA, our PC software application, for a highly flexible remote control solution. Each Remote Expander or SOLSA instance provides an additional, independent, control interface into the main audio processing engine (it does not add more audio processing capacity!).
