Fader Tile

Additional System T control interface options

Flexible, adaptable and scaleable

Additional System T Fader Tiles allow extremely flexible and adaptable configurations. Any System T Fader Tile and/or computer running T-SOLSA software can be combined within a single system along with main control surface(s), providing custom solutions to fit any application or environment.  For example a main control surface and two additional remote Fader Tiles can be connected to a single Tempest Engine.

“What’s interesting for us, with the generation of students that we have now, and especially with the TCRs, is the touch screen option […] So many of our students will intuitively grab a ‘fader’ with their finger and slide it […] The Fader Tiles are so well constructed. We’re optimistic about their durability with novice users.”

TIM MACARTHUR, DIRECTOR OF TECHNICAL OPERATIONS AT EMERSON COLLEGE

Hands on, configurable control over signal paths

  • Freely configurable to control a variety of different signal paths with clear, bright colour coding.

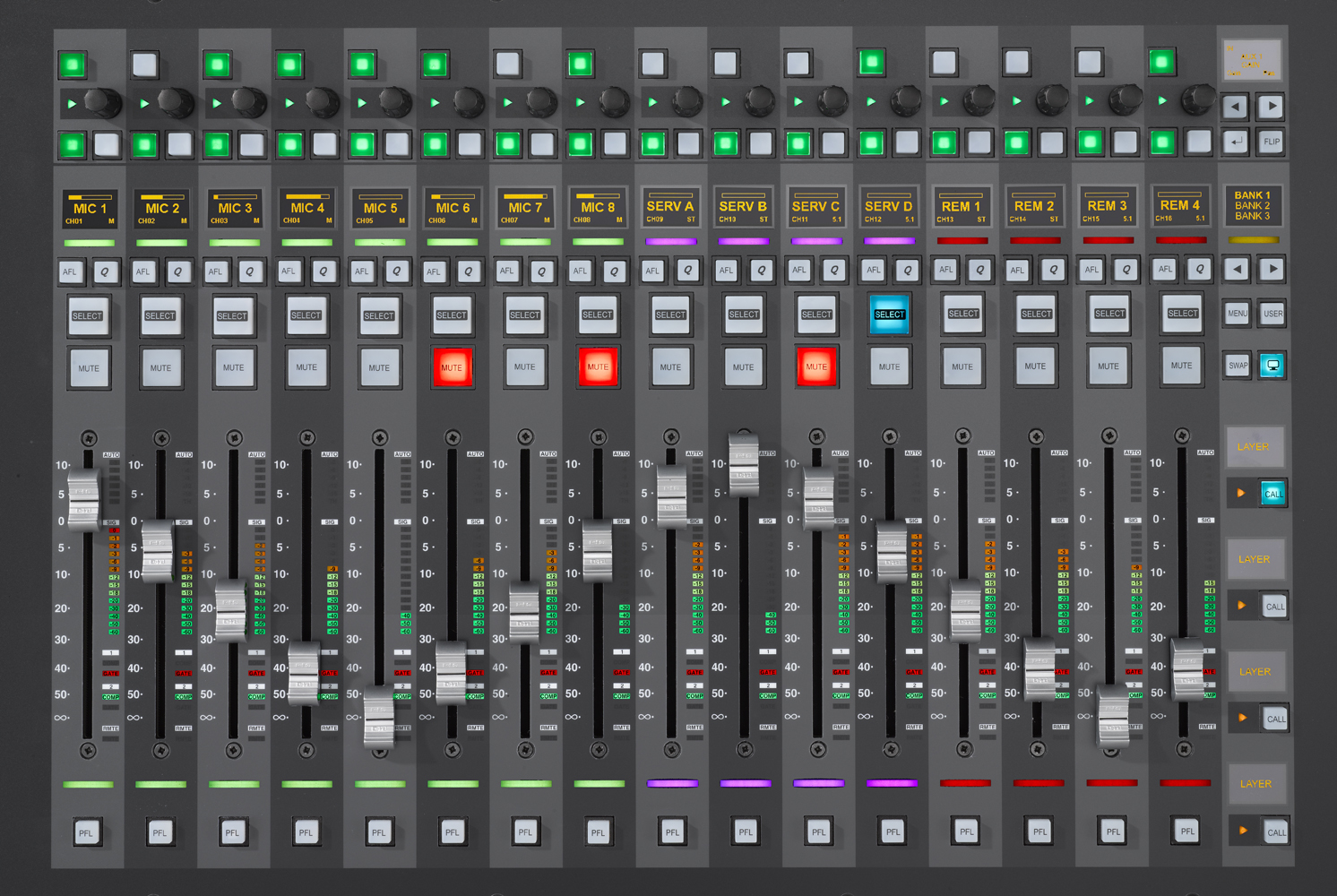

  • Each tile has 16 faders with five layers, and four banks per layer.
  • Each fader strip has a 100mm motorised fader, level meter and a collection of status LED’s covering Dynamics, De-ess mode, Dialogue Automix and Remote AFV or Production Automation control.
  • Dedicated PFL Solo key plus back stop fader PFL.
  • Additional keys for Mute, AFL and Select, which controls a menu of tile functions in conjunction with the touch screen interface.
  • Three line OLED delivers a variety of visual feedback of data.
  • Multi function Quick Encoder with three switches.
  • Each strip features SSL’s acclaimed ‘Super-Q’ key which allows the user to spill the contributing elements or destinations for a selected fader/path across the control surface providing instant feedback and mix control either from a channel- or mix-centric view.
  • Querying a channel shows the destinations to which the channel is routed.
  • Querying a mix bus will show the channels that are contributing to that mix.
