L100 Plus

Small scale, big sound

All you need for small to mid-scale projects

The L100 Plus features SSL's next-generation of Optimal Core Processing (OCP) technology, offering greater DSP resource for allocation and extremely flexible I/O architecture. The console has up to 472 inputs and 472 outputs. It has 128 mix paths at 96 kHz. These paths can be assigned as Channels, Stem Groups, Auxes and Masters to suit demands and configured as anything between mono, which use a single path, to 5.1 which use six paths.

L100 Plus features an output matrix which has four x 32 inputs and 12 outputs. All 12 matrix output paths have High and Low Pass Filters, 4 band EQ, 2 seconds of delay and our unique All Pass Filters available. This is in addition to two inserts that can be used with both the internal Effects Rack and external processing.

L100 Plus Local I/O

The L100 Plus features a comprehensive collection of Input and Output connectivity with the capacity to serve small to mid-scale production applications. L100 Plus provides a versatile collection of local I/O built into the control surface so can operate without the use of any Stageboxes if required and has good connectivity for local peripherals when used in a pure FOH role. SSL Live consoles feature auto detection so identify any SSL Live I/O connected within the software routing pages.

Standard MADI port configuration: four pairs of coaxial MADI ports. There is an additional FX loop - a separate optical MADI port (out/in), designed for connecting an external FX device such as a system using Waves Multirack or a VST effects host. An optional redundant pair of SSL Blacklight II fibre connectors provide 256 bi-directional channels at 96 kHz between console and stage. An optional local Dante card provides 32x32 channels of I/O at 96 kHz over a redundant Dante connection. The Dante interface offers Sample Rate Conversion between all Dante network rates. An optional redundant pair of SSL X-Light connectors provide 256 bi-directional channels at 96 kHz between console and stage using a single cable with ruggedised connectors. There is a Wordclock connection. A redundant power supply is optional.

L100 Plus local analogue I/O configuration; 12 mic/line inputs in, 2 front panel Talkback mic/line XLR inputs, 12 line outputs, 2 Headphone/Monitor outputs and a front panel 3.5mm line input. AES/EBU digital I/O configuration: 4 pairs of inputs and 4 pairs of outputs. AES/EBU I/O has fully variable sample rate conversion.

Six consoles one soul

There are six models available in the SSL Live console range; the L650, L550 Plus, L450, L350 Plus, the L200 Plus and the L100 Plus. At SSL we believe that offering a range of sizes and console specifications should not mean compromising on quality or features.

All six consoles use the same Remote I/O, use identical audio conversion and internal audio engine technology. The combination and layout of Fader Tiles, Master Tile and Channel Control Tile varies but the controls available and feature set are identical. The consoles use the same software with identical architecture, routing capability, and of course audio processing tool kit. A full channel on the L550 Plus is the same as a full channel on the other consoles and they all offer exactly the same outstanding collection of insert Effects. The differences between the six models centre on physical size, layout, available channel paths & processing power, and available local I/O.

Live V5.0 Software overview

The latest V5.0 Software update brings a host of new features and enhancements to the SSL Live platform. V4.11 software introduced integrated control of L’Acoustics L-ISA Immersive system, V5.0 furthers that, adding integrated control of Meyer Sound Immersive loudspeaker systems via SpaceMap Go APP. New ‘Plus Processing Packs’, enhanced 3rd party device control, new processing tools; Blitzer and Sorcerer, and Path Recall Safe show our commitment to keeping all SSL Live consoles ahead-of-the-curve.

Watch the video to find out more about the new L450 & L650 consoles and enhancements SSL Live V5.0 software offers.

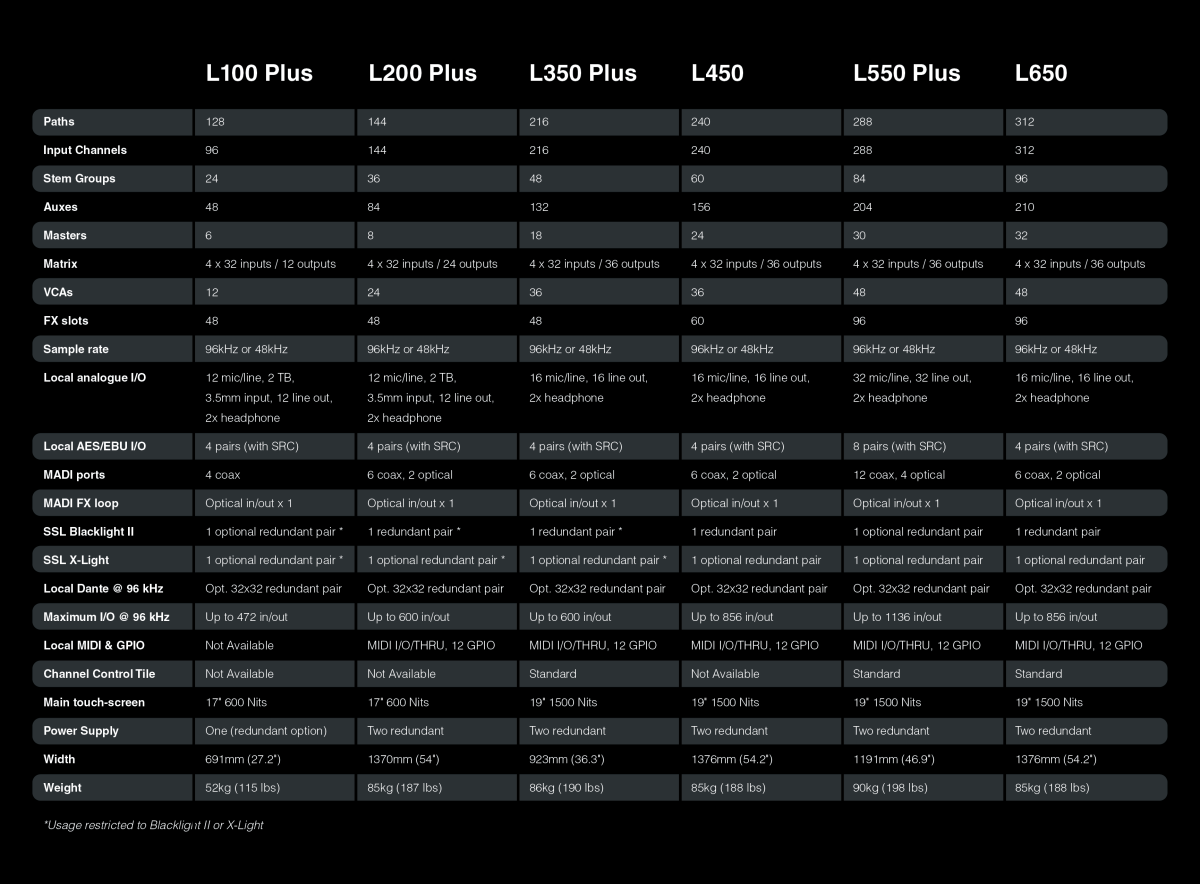

SSL Live console specification

Inventory which can scale with your production requirements has never been more important. Alterations in event location, artists technical requirements and the growing need to provide dedicated mixes for broadcast and OTT/streaming often present additional processing overheads on your mixing console. As part of the new SSL live V5.0 Software, Plus Processing Packs are available for L100, L200, L350 and L550 consoles, increasing the SSL Live consoles DSP in key areas, including: Input Channels, Stem Group, Auxes and Masters.

All new SSL Live consoles have Plus Packs pre-installed. Speak to your SSL Live representative about installing a Plus Pack on your L100, L200, L350 and L550 console inventory.
