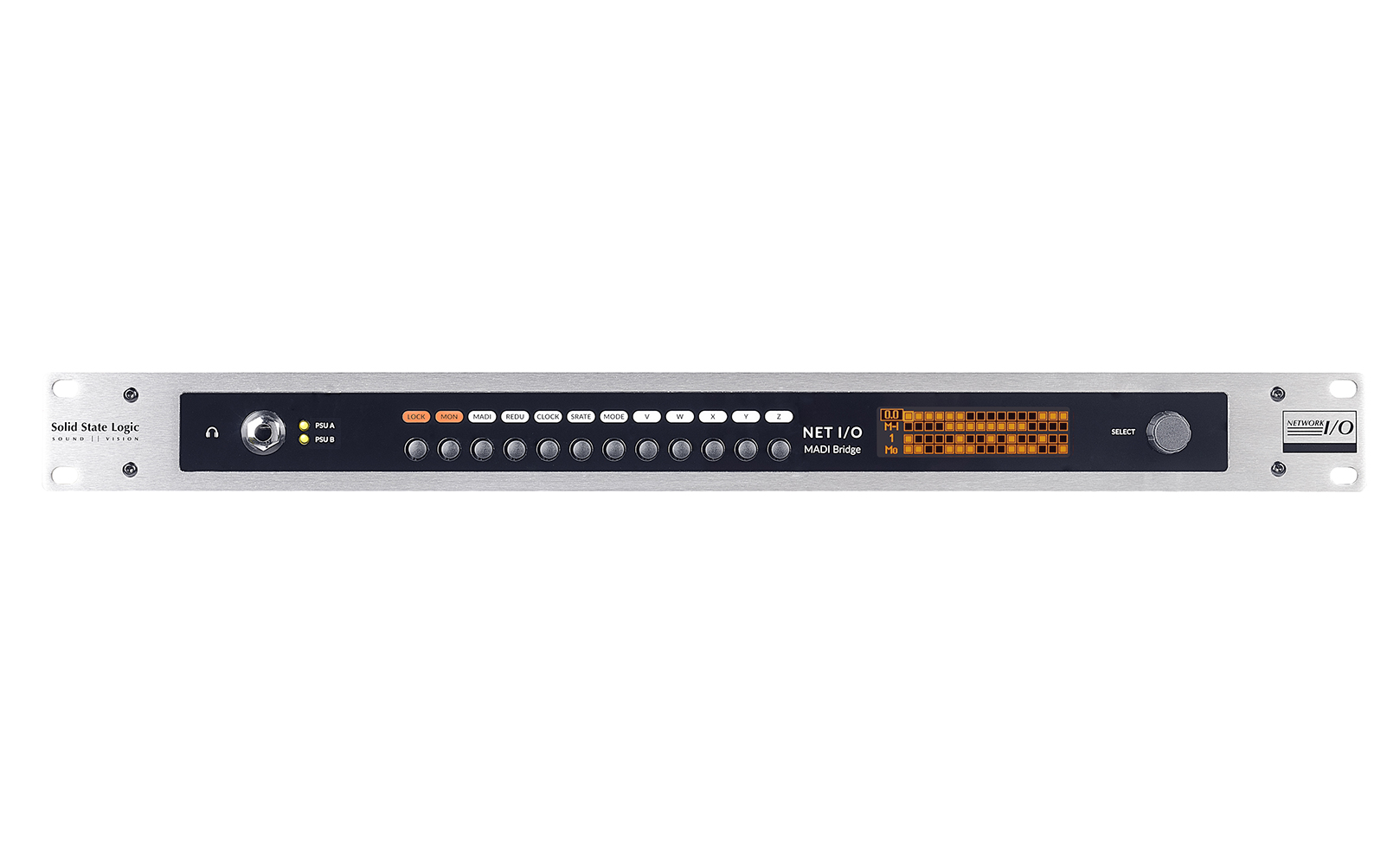

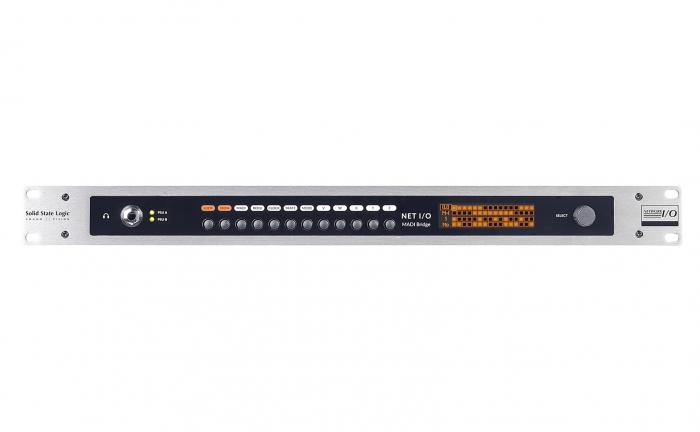

MADI-Bridge

Broadcast specification bidirectional MADI and Dante bridge

Standalone Broadcast Specification MADI to IP Audio Network Interface

The MADI-Bridge is a broadcast specification bridge between the MADI audio format and Dante. It is a bi-directional interface that can deliver 64 channels @ 48kHz (32 channels at 96kHz, 16 channels @ 192kHz). MADI-Bridge ‘Split Mode’ enables 2 x 32 channels @ 96kHz streams to be merged to form a single 64 channel @ 48kHz stream.

MADI-Bridge also features bidirectional sample rate conversion between any asynchronous sample rates, from 44.1kHz to 192kHz. MADI-Bridge features redundant PSU, MADI and IP Network ports and in addition to the inbuilt clock redundancy options in Dante Controller, the MADI-Bridge also includes a pair of redundant sync inputs for use as a self-redundant Dante Grand master clock. 32bit MADI control tunnelling allows a pair of MADI-Bridges to be used to pass audio and user bits (including control data) of a whole MADI stream across a network.

  • Interface between MADI and IP Audio Networks using Dante.

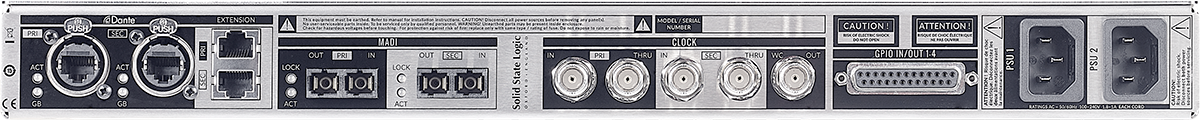

  • Redundant: PSU, MADI ports, Dante Ports, Sync In - Full Broadcast Spec Redundancy.
  • Bidirectional sample rate conversion between any asynchronous sample rates, from 44.1kHz to 192kHz.
  • 32bit MADI control tunnelling.
  • GPIO connectivity - embed tallies across the network.
  • Redundant Network extension ports - Local IO at bridge without a switch.
  • Word Clock out - Clock a MADI device to the Dante Network.

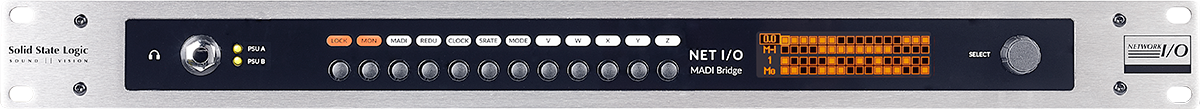

  • Virtual Headphone Patch- 4 location Monitoring and Signal Present Metering to truly replace your patch bay with a digital network while retaining confidence and fault finding tools.
  • Lockout Mode - Prevent accidental alteration of front panel settings.

MADI-Bridge - Documents

Software downloads for this product are delivered from within your 'My SSL' registered user profile, accessed via the link in the top right corner of this page. You will need to register if you want to access software updates.

System T Brochure

Download

MADI-Bridge User Guide Rev.3

Download

Find a broadcast partner

Click here for your regional broadcast contact.
