Mixed Format I/O

A versatile combination of mic/line and digital I/O

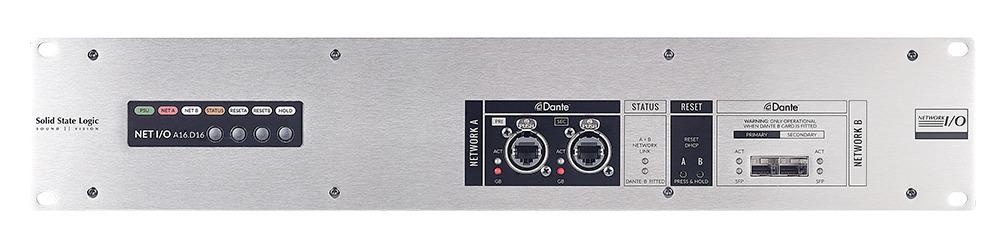

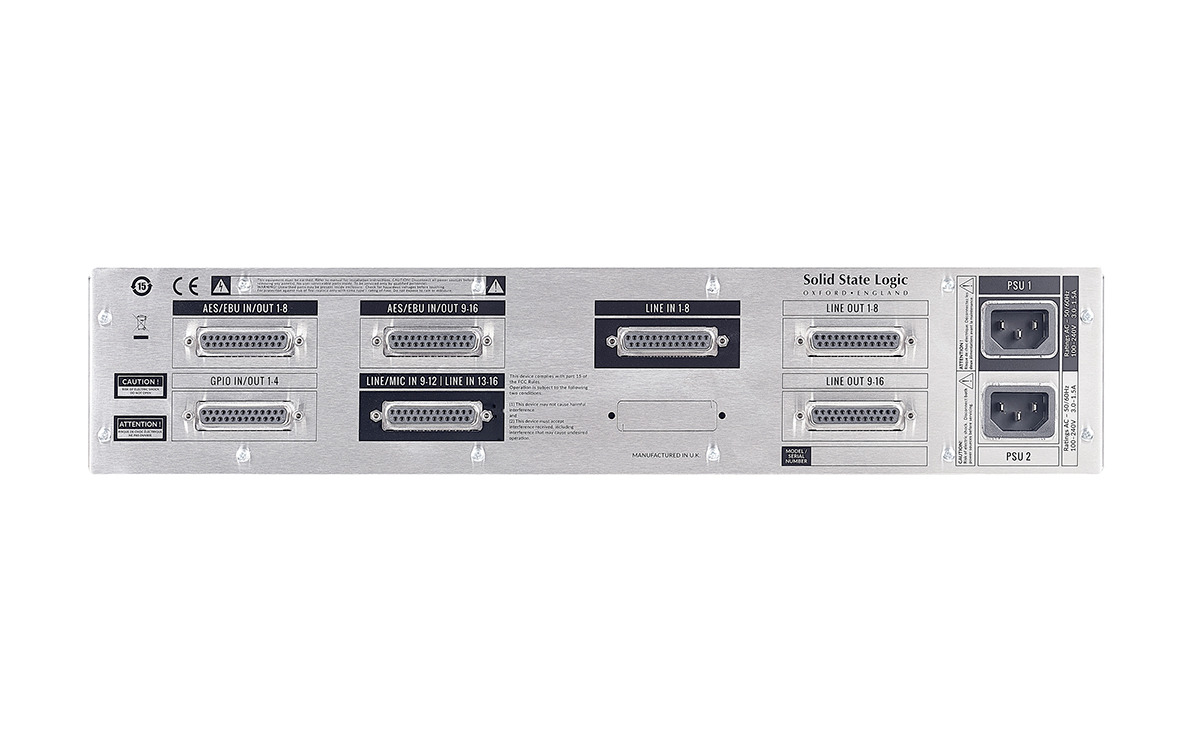

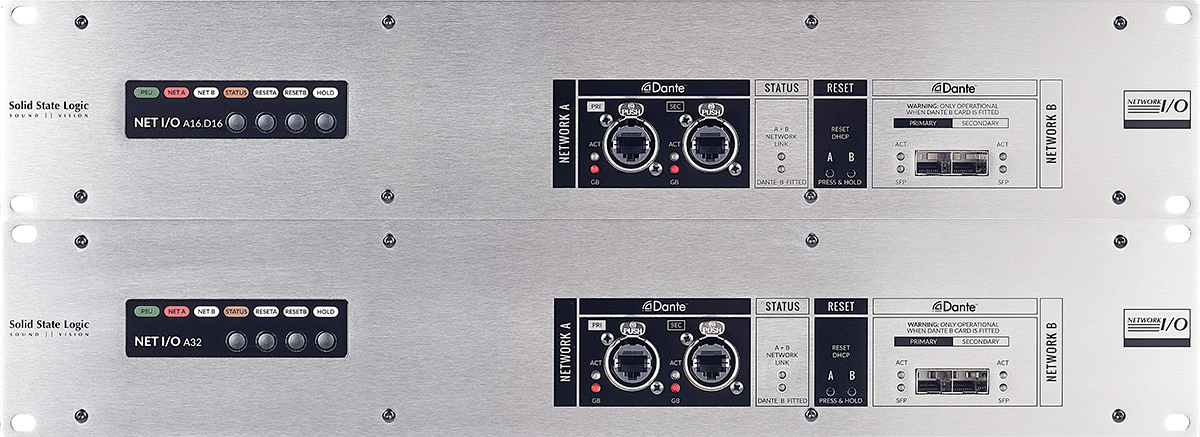

A16.D16

A versatile combination of mic/line and digital I/O - The A16.D16 provides a combination of SSL SuperAnalogue and AES3 digital I/O to Dante, AES 67 based IP networks. A16.D16 includes redundant network connections* and PSUs. It features 16 line inputs - four of which also have switchable mic circuits, 16 line outputs and 16 digital I/O in 8 AES3 pairs. There are four GPIO.

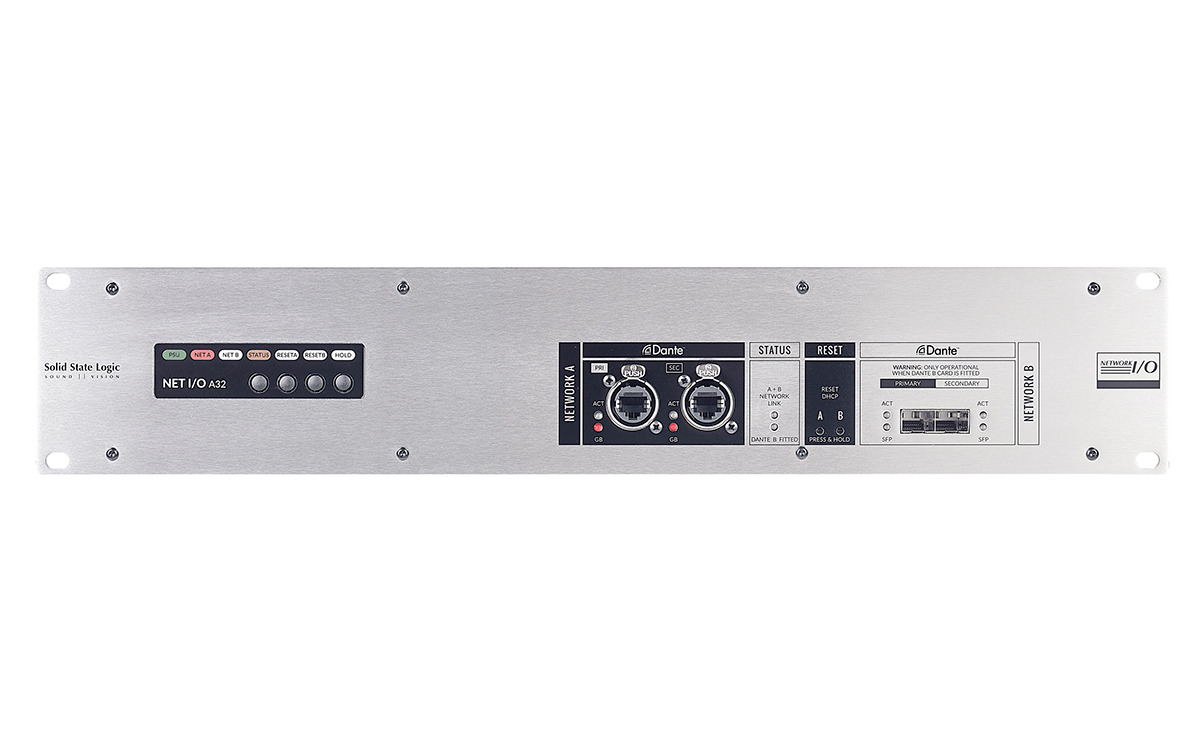

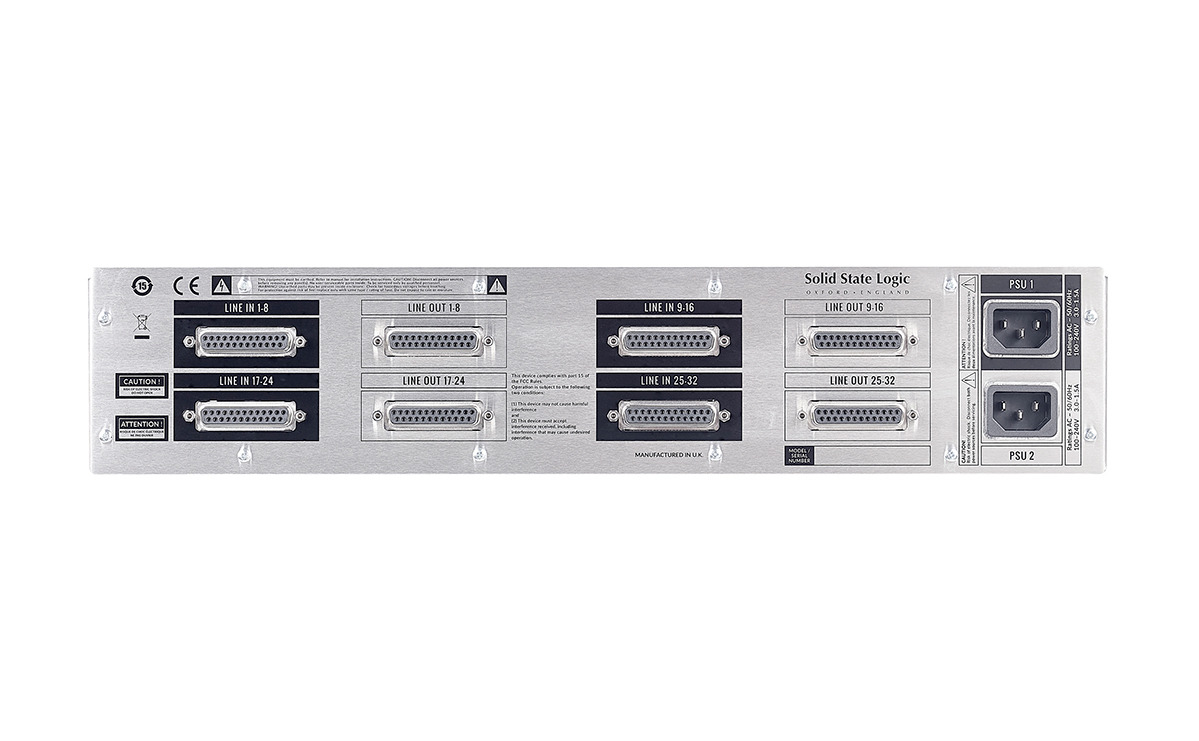

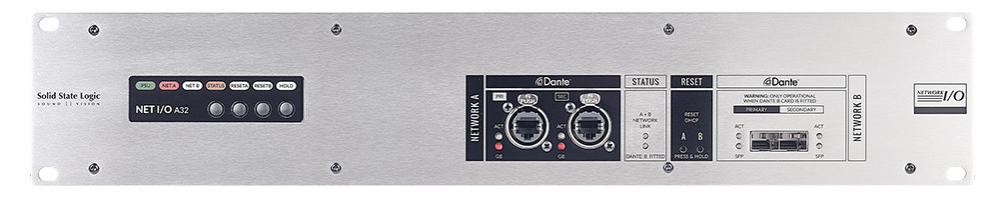

A32

Bulk analogue line level I/O - The A32 provides SSL SuperAnalogue I/O to Dante and AES 67 based IP networks. A32 includes redundant network connections* and PSUs. It features 32 line inputs and 32 line outputs.*Network B connectivity provides a future hardware upgrade path for direct SFP fibre connection.

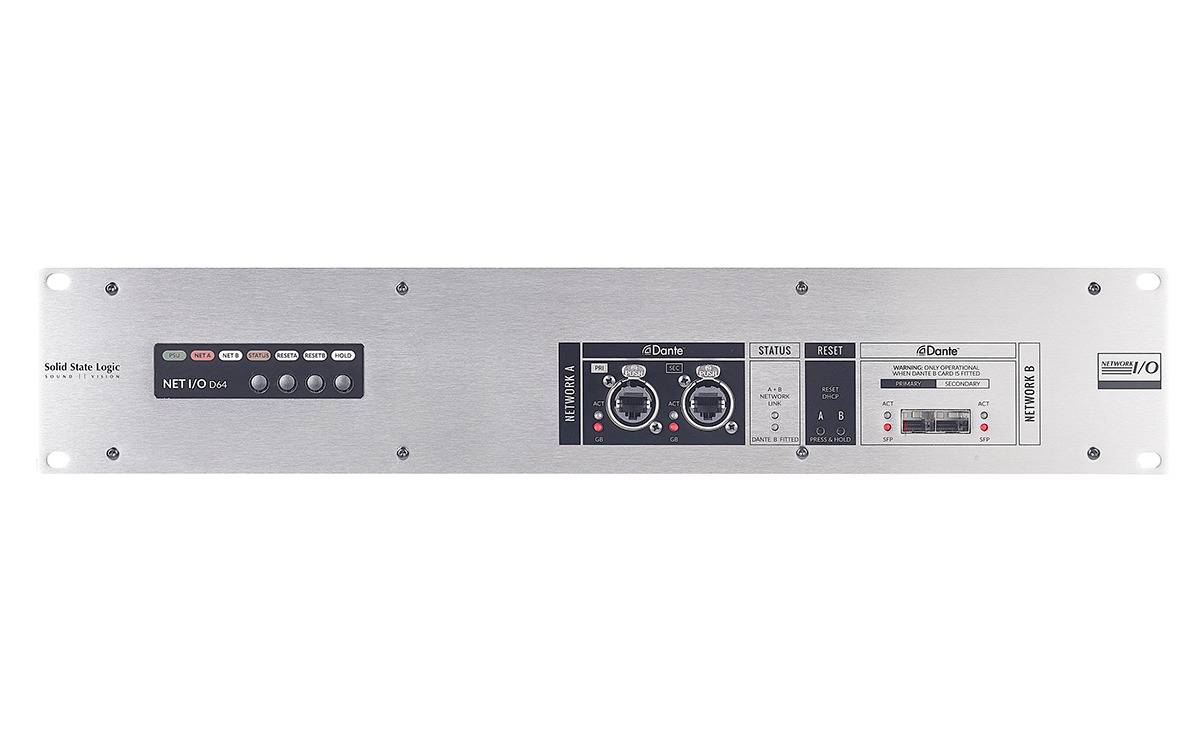

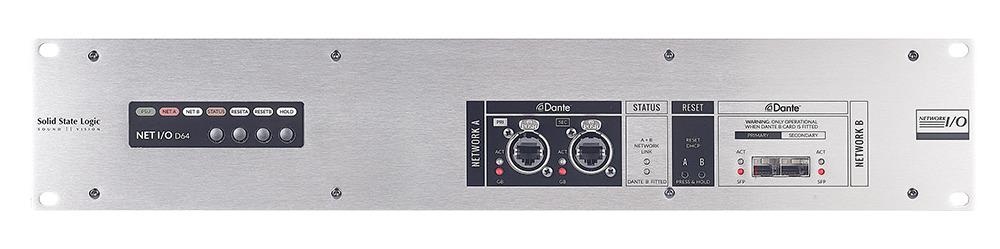

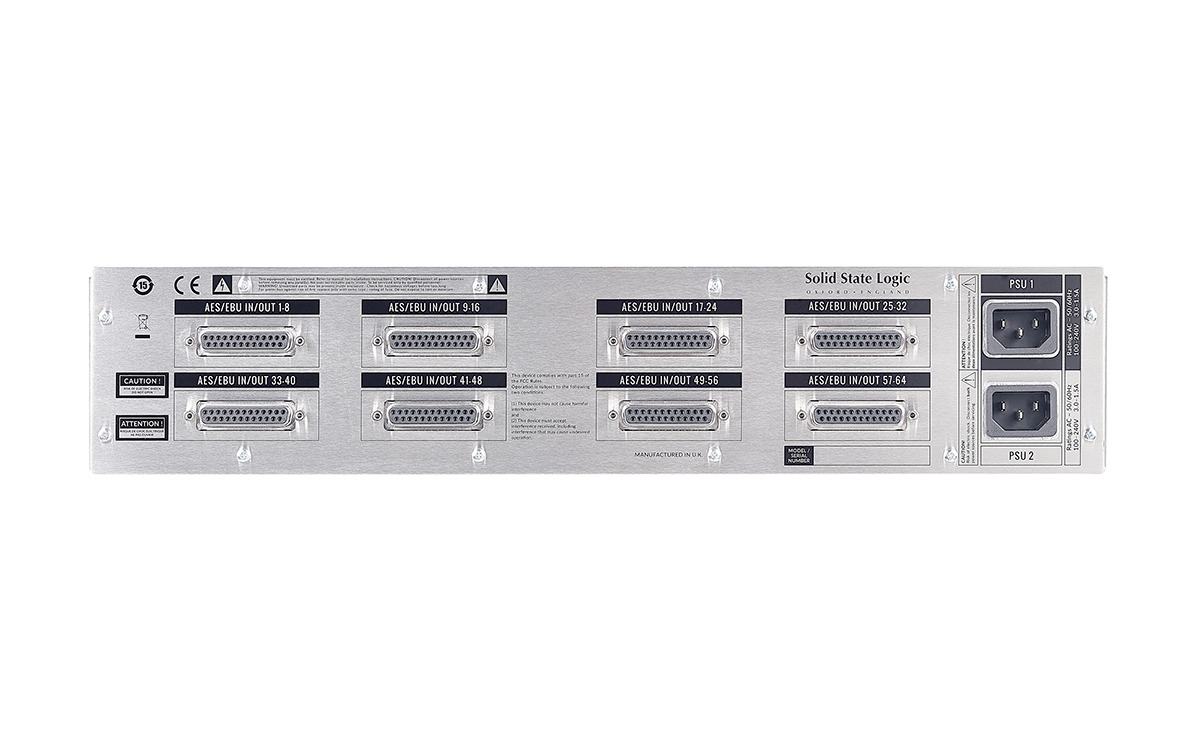

D64

AES to Dante conversion wherever you need it - The D64 provides 32 input/output Pairs of AES3 audio I/O connectivity to redundant Dante network connections*. Sample Rate Convertors allow seamless integration of unlocked AES sources. D64 includes redundant network connections and PSUs. *Network B connectivity provides a future hardware upgrade path for direct SFP fibre connection.

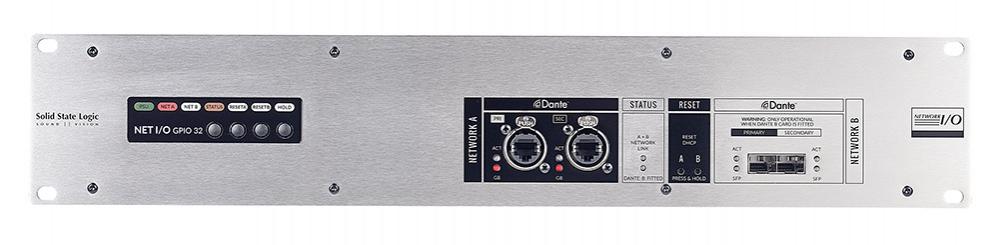

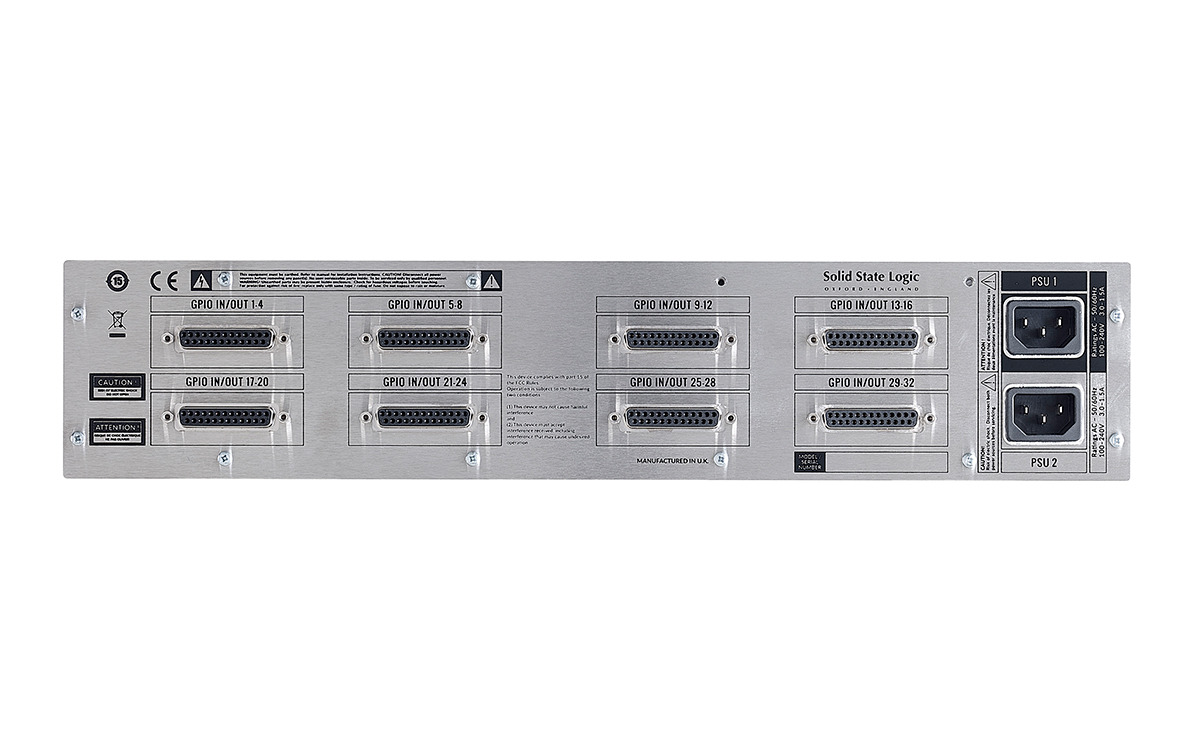

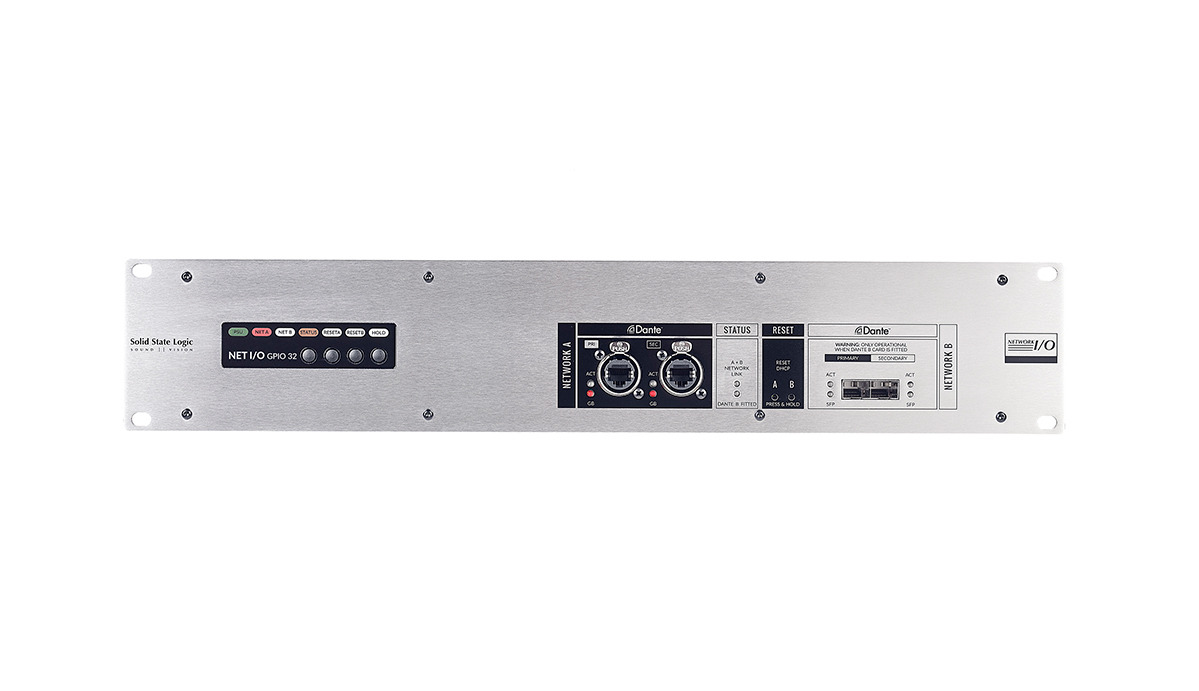

GPIO

GPIO 32 provides bulk GPIO connections for interfacing with System T consoles and transporting GPIO across System T networks. It facilitates a variety of possibilities and applications for System T consoles, such as custom user key panels or complex Audio Follow Video setups. 32 GPIs and 32 GPOs are available from the 2U unit. GPIO 32 maintains the solid design and redundancy features found on the rest of the Network I/O range: redundant PSUs and redundant Dante network connections come as standard. When coupled with System T’s powerful Event Manager, GPIO 32 has endless possibilities for custom console functions and external triggers. GPIO 32 can be controlled from all variants of System T control surface (S500, S300, TCR, remote T-SOLSA) running V2.0 (or later) software.

A16.D16

  • SuperAnalogue and AES Digital I/O to Dante, AES 67 based IP networks.
  • 16 live level inputs (including 4X switchable SSL SuperAnalogue Micpre's).
  • 16 line outputs.
  • 16 digital I/O in 8 AES3 pairs.
  • Four GPIO.
  • Redundant network connections.
  • Redundant PSUs connections.

A32

  •  SSL SuperAnalogueI/O to Dante and AES 67 based IP networks.
  • 32 line level inputs.
  • 32 line level outputs.
  • Redundant network connections.
  • Redundant PSUs connections.
  • Network B connectivity provides a future hardware upgrade path for direct SFP fibre connection.

D64

  • AES to Dante conversion.
  • Sample Rate Convertors allow seamless integration of unlocked AES sources.
  • 32 input/output Pairs of AES3.
  • Redundant Dante network connections.
  • Redundant network connections.
  • Redundant PSUs connections.
  • Network B connectivity provides a future hardware upgrade path for direct SFP fibre connection.

GPIO 32

  • Bulk GPIO connections for interfacing with System T consoles and transporting GPIO across System T networks.
  • Redundant PSUs connections.
  • Redundant network connections.
  • Controlled via all variants of System T control surface (S500, S300, TCR, remote T-SOLSA) running V2.0 (or later) software.

Mixed Format I/O - Documents

Software downloads for this product are delivered from within your 'My SSL' registered user profile, accessed via the link in the top right corner of this page. You will need to register if you want to access software updates.

System T Brochure

Download

A16.D16, A32, D64 and GPIO 32 User Guide (Rev 1.1)

Download
