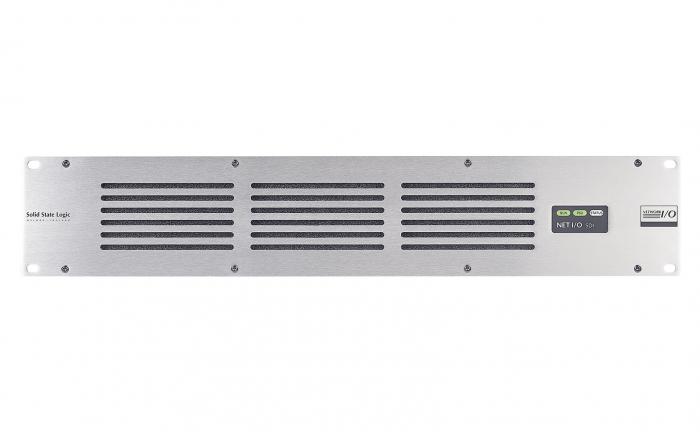

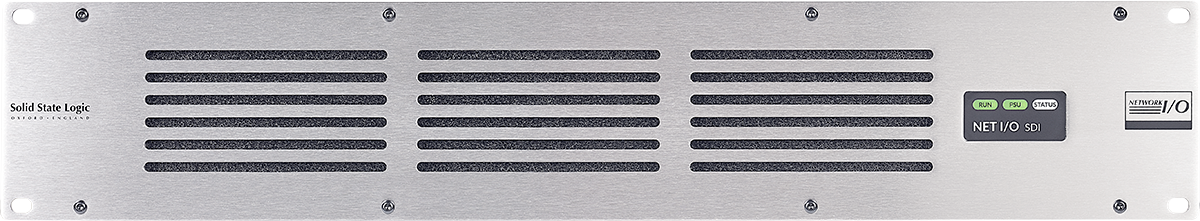

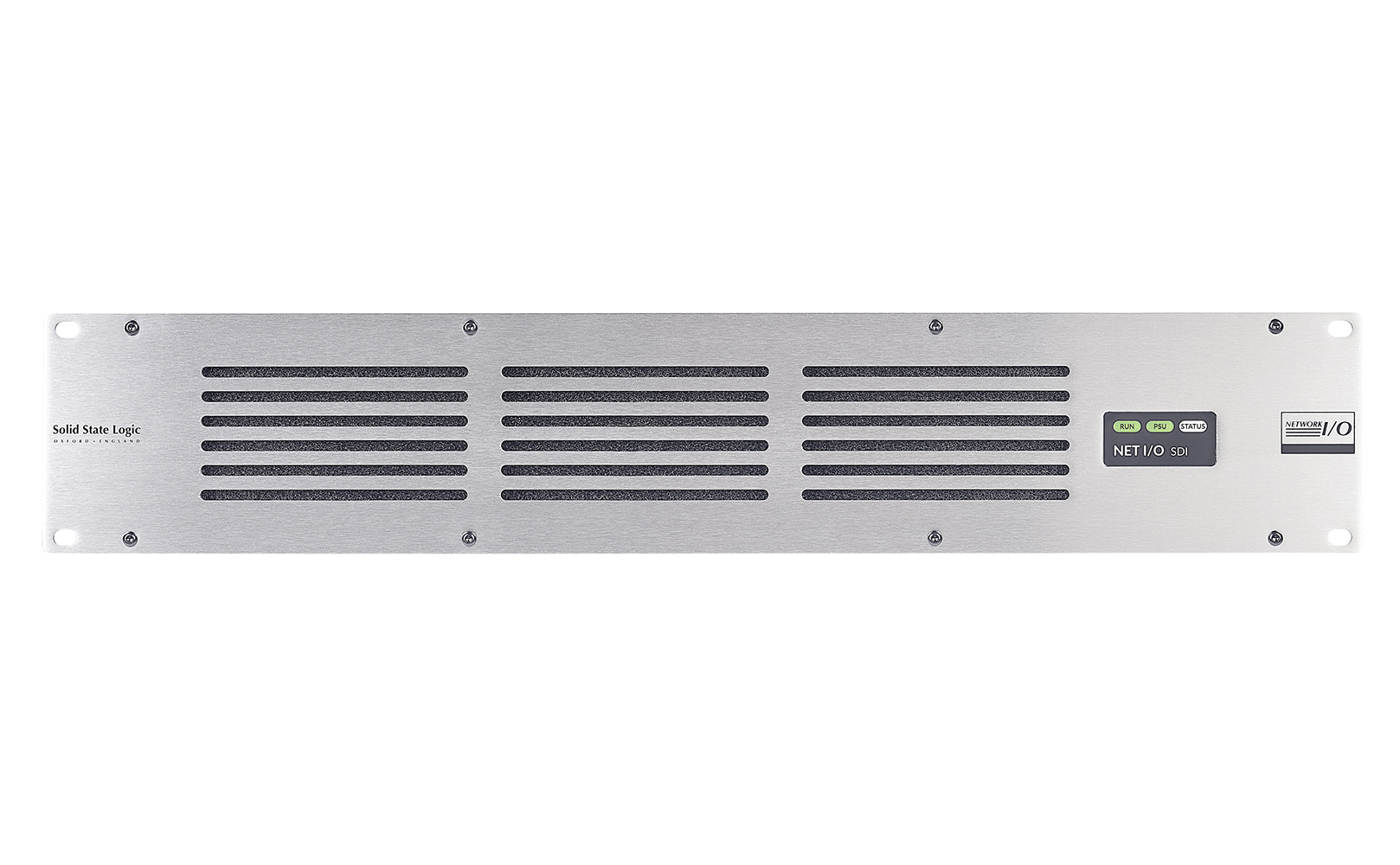

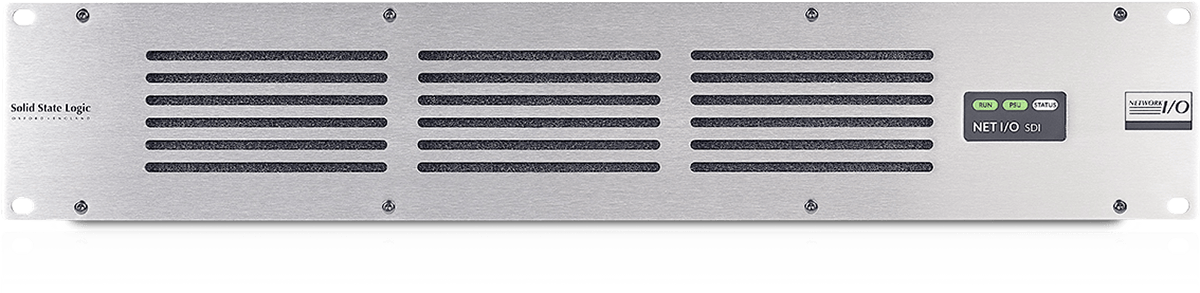

SDI

Embedder/de-embedder

Bidirectional bridging between embedded SDI Audio, your IP network and MADI.

SDI has eight circuits, each capable of Embedding and De-Embedding, and the unit has dual Dante and triple MADI connectivity (2 x optical, 1 x coax I/O).

In addition to SDI-Dante bridging SDI allows direct bridging between SDI and MADI infrastructure. Internal channel-by-channel routing enables flexible routing between all three domains. As you would expect redundant PSUs provide reassurance in a 24hr Broadcast environment.

  • Interface between Embedded SDI audio, Dante and MADI.
  • Eight 3G-SDI paths with embedders and de-embedders for 16 audio channels.
  • Redundant: PSU, MADI ports, Dante Ports = Full Broadcast Spec Redundancy.
  • 2 x optical and 1 x coax MADI I/O.
  • Internal channel-by-channel routing for all audio paths.
  • AES Connectivity.
  • SRC on the Audio path to and from SDI.

SDI - Documents

System T Brochure

Download

Network I/O SDI User Guide Rev.1

Download
