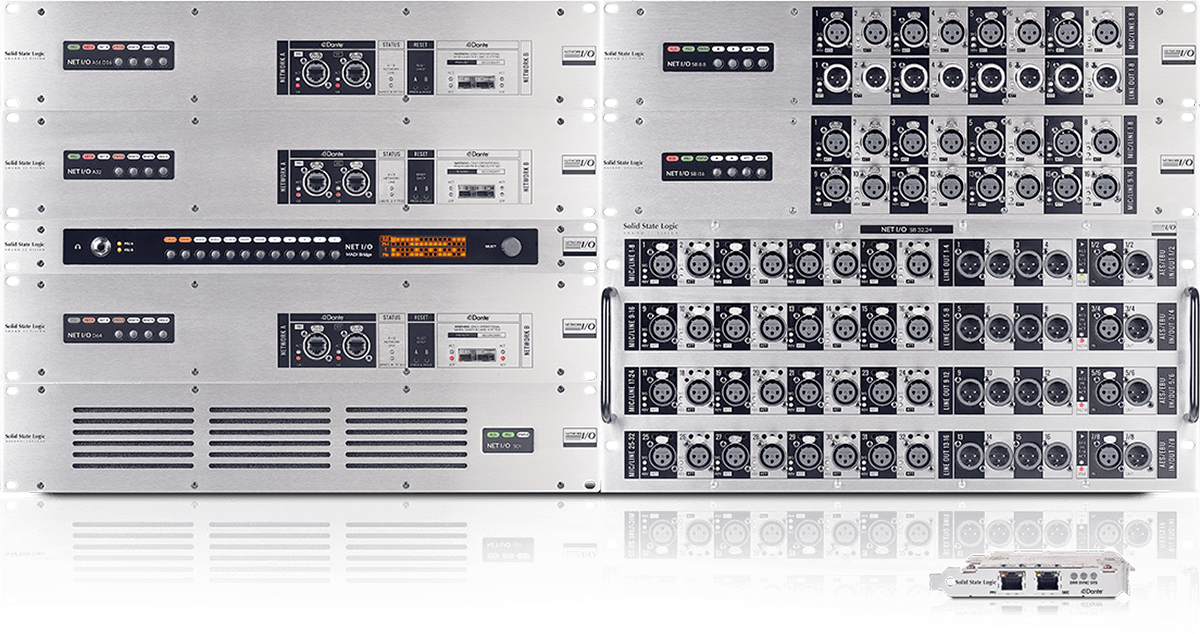

Stageboxes

SSL mic/line preamp technology for your Dante IP Audio Network.

SuperAnalogue mic/line preamp technology for your Dante IP Audio Network.

Designed for use on any Broadcast studio floor, venue or recording room, SSL Network I/O Stageboxes allow easy deployment of Mic Pres and Speaker feeds where needed. Network I/O’s plug and
play features allow devices to easily be moved, even between locations and retain routing and settings if required. All units can be remote controlled via System T broadcast consoles and control interfaces, SSL Live consoles, and the SSL Remote Stagebox Application. There are four different models available; SB8.8, SB i16, SB 16.12 and SB32.24.

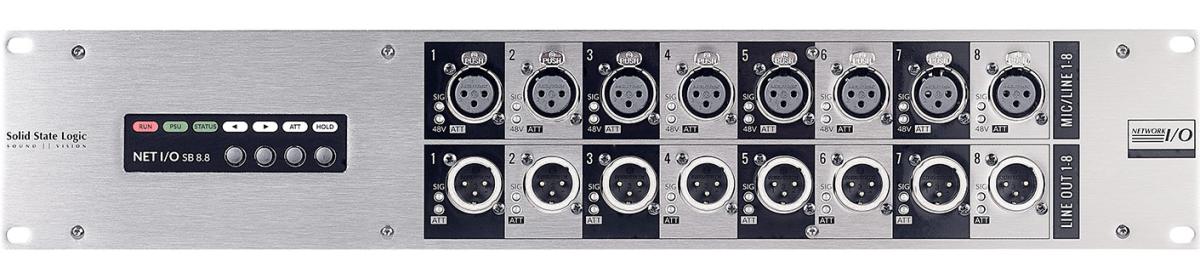

SB 8.8 & SB i16

These 2RU units offer slightly different configurations but share identical features. The SB 8.8 offers eight mic/line inputs and eight line level outputs. SB i16 offers sixteen mic/line inputs. Both models feature a pair of redundant RJ45 Dante network connections, a pair of network extension connections, GPIO connectivity and redundant PSU’s. They have individual signal present, phantom power and local attention LEDs to provide intuitive front panel feedback.

The SB 8.8 and SB i16 feature inbuilt limiters and SSL’s innovative AutoPad system that automatically applies a Pad according to gain setting. The AutoPad is applied if the gain is set at a low value that would require a pad to achieve making the entire possible mic gain range seamlessly available at all times. An Audition feature allows individual channels to be monitored over the network (using an SSL console or App) without the signal actually being routed to a network destination.

SB 16.12

SB 16.12 is a 3U ruggedised enclosure featuring dual redundant power supplies, 16 mic/line inputs, 8 analogue line outputs and 4 digital inputs and outputs on 2 AES3 input/output pairs. It has a pair of redundant RJ45 Dante network connections in addition to a user configurable SFP port that can be fitted with RJ45 or optical connectors. These can be used for network extension or to provide network separation for the gain-compensated Dante “split”, for connection to a second Dante-equipped console or appropriately equipped device on a different network. It has individual signal present, clip and phantom power LED’s as well as global indication of PSU, Network A and B and Hardware status. SB 16.12 can operate at 96kHz or 48kHz sample rates.

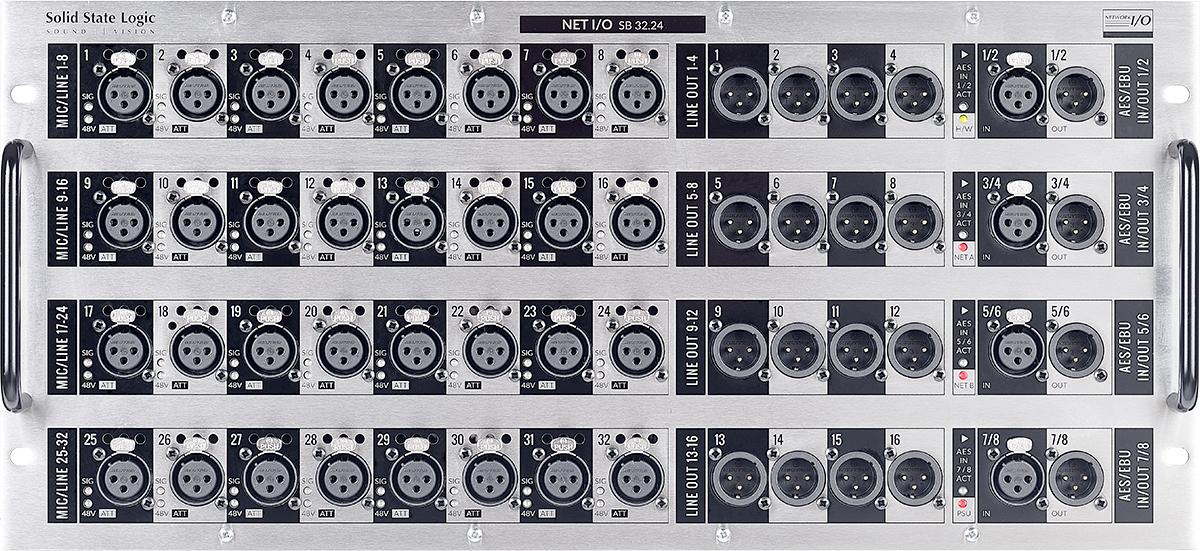

SB 32.24

SB 32.24 is a 5U ruggedised enclosure featuring dual redundant power supplies, 32 mic/line inputs, 16 analogue line outputs and 8 digital inputs and outputs on 4 AES3 input/output pairs. It has a pair of redundant RJ45 Dante network connections in addition to a user configurable SFP port that can be fitted with RJ45 or optical connectors. These can be used for network extension or to provide network separation for the gaincompensated Dante “split”, for connection to a second Dante-equipped console or appropriately equipped device on a different network. It has individual signal present, clip and phantom power LED’s as well as global indication of PSU, Network A and B and Hardware status.

Stageboxes - Documents

Software downloads for this product are delivered from within your 'My SSL' registered user profile, accessed via the link in the top right corner of this page. You will need to register if you want to access software updates.

System T Brochure

Download

Network I/O Controller V1.10.9

The SSL Network I/O Controller Application provides PC software based remote control for SB8.8, SBi16, SB32.24, A16.D16, A32 & D64.

Network I/O Controller V1.10.9

Download

Stagebox V4.0 Update Package

Contains installation notes, firmware, and the control application for Network I/O SB8.8, SBi16, SB32.24, A16.D16, A32 & D64 units.

Download and unzip the directory and follow the instructions in the Installation Notes document. The update order is important, follow the installation notes carefully.

Stagebox V4.0 Update Package

Download
