TE1 Tempest Engine

Patented Optimal Core Processing technology and scalable DSP.

256 path capacity

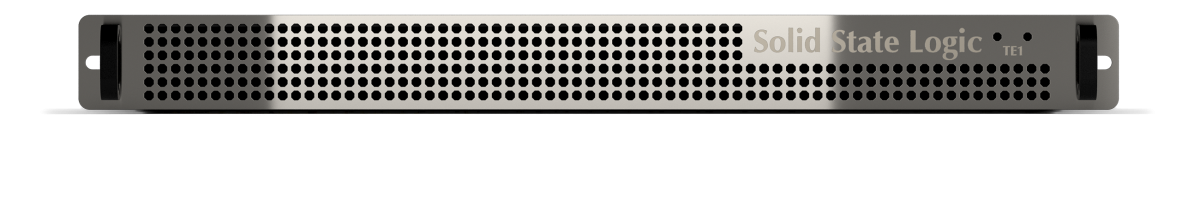

Developed around SSL’s patented Optimal Core Processing (OCP) software using arrayed industrial PC hardware in a controlled operating environment, the new TE1 Tempest engine is housed in a lightweight, efficiently cooled 1RU chassis and offers two processing packs to scale in harmony with your production requirements.

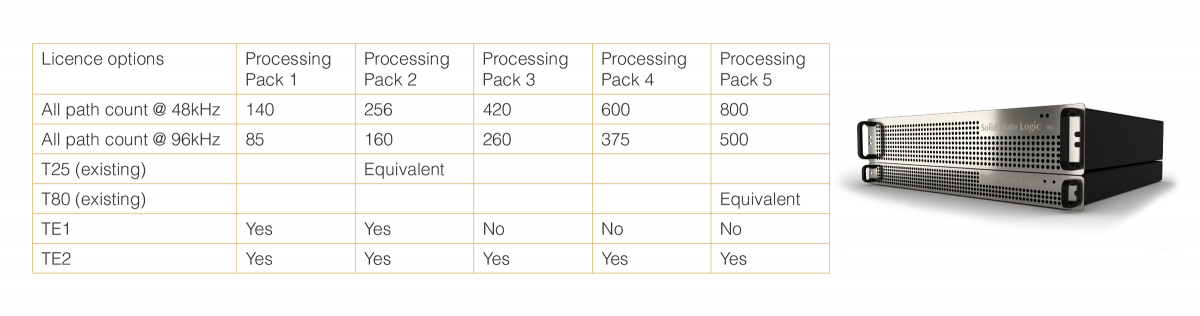

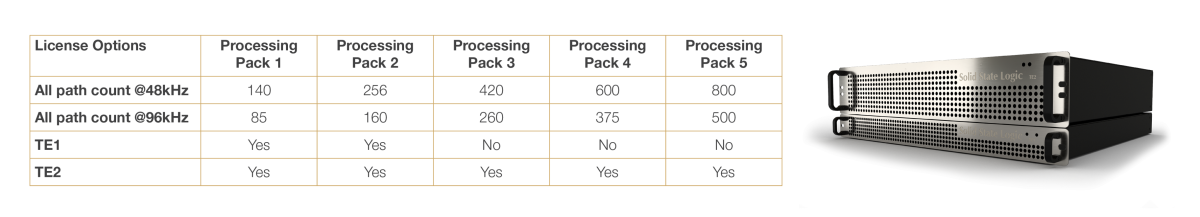

Software licenses are available as perpetual or short-term time-based rental options. TE1 supports Processing Pack 1 & 2, TE2 supports all five packs. All System T surface and control variants can operate with all engines and software packs. TE1 offers 256 path capacity and TE2 offers 800 path capacity. Paths and processing can be dynamically allocated in real time without interrupting audio.



With upto 1024 inputs and 1024 outputs per engine, System T TE1 can handle any mid-scale production. Tempest engines can be deployed as mirrored redundant pairs, with instant audio changeover, if required each engine can be placed in separate physical zones. TE1 supports 1 or 2 Network I/O HC  cards, each providing 512 channels of inputs and 512 outputs.

•    Scalable DSP featuring flexible and agile processing capacity licences
•    Path pool - Up to 256
•    Path processing pool - 256 Dyn, 256 EQ, 128 Delay
•    Simultaneous inputs & outputs - Up to 1024
•    AoIP routing for unlimited total IO capacity
•    Redundancy Options
•    SSL's patented Optimal Core Processing Technology

TE1 Tempest Engine - Documents

Associated software and firmware downloads for this product are available with registered accounts on our support hub here.

System T Brochure

Download

Find a broadcast partner

Click here for your regional broadcast contact.
