UF8 Advanced DAW controller is designed for today’s DAW-based production workflows and ultrafast turn-around times. UF8 is the culmination of…
UC1 is a hardware plug-in controller like no other. Dedicated knob-per-function Channel EQ and Dynamics controls, centre section featuring full Bus Compressor controls and authentic moving-coil gain reduction meter combine to offer the most creative, intuitive, and ultimately effective way of controlling the new SSL Native Channel Strip 2 and Bus Compressor 2 plug-ins within your DAW session.
SSL production tools are the benchmark for studio ergonomics and workflow. UC1 draws on decades of analogue and digital console design to develop an intelligent and deeply integrated SSL plug-in control surface that lets you focus on your production goals and not the process.
UC1’s layout of encoders, switches and colour groupings offer professional SSL console ergonomics seamlessly integrated with our most advanced Channel Strip and Bus Compressor plug-ins to date. Multiple parameters can be controlled simultaneously and precisely, equipping you with a production tool that nurtures muscle memory, provides unmatched sonic flexibility and inspires operator confidence. To expand your hybrid workflow further, accompany with UF8 Advanced DAW Controller.

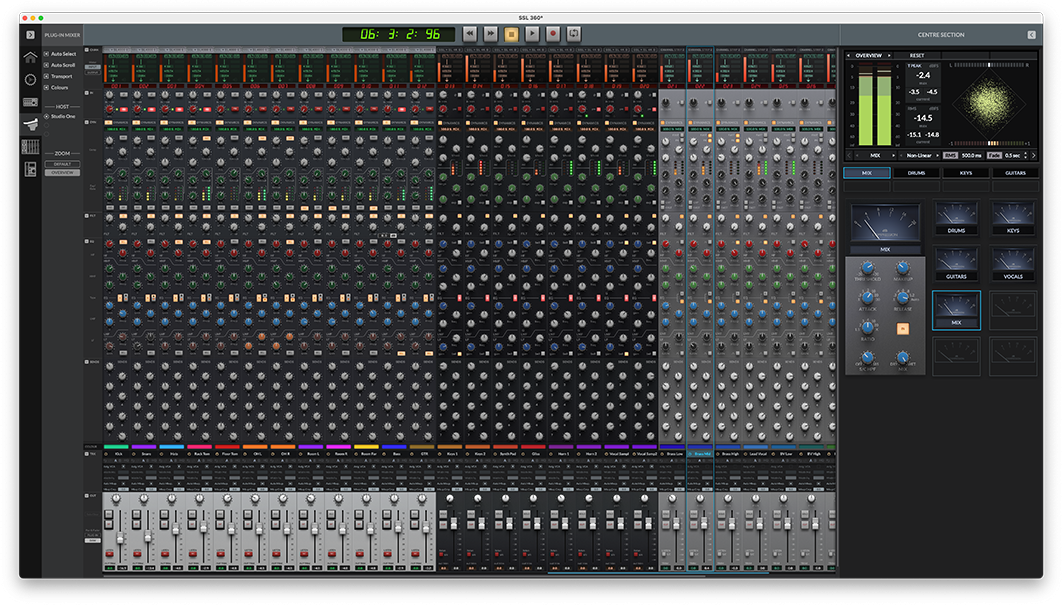

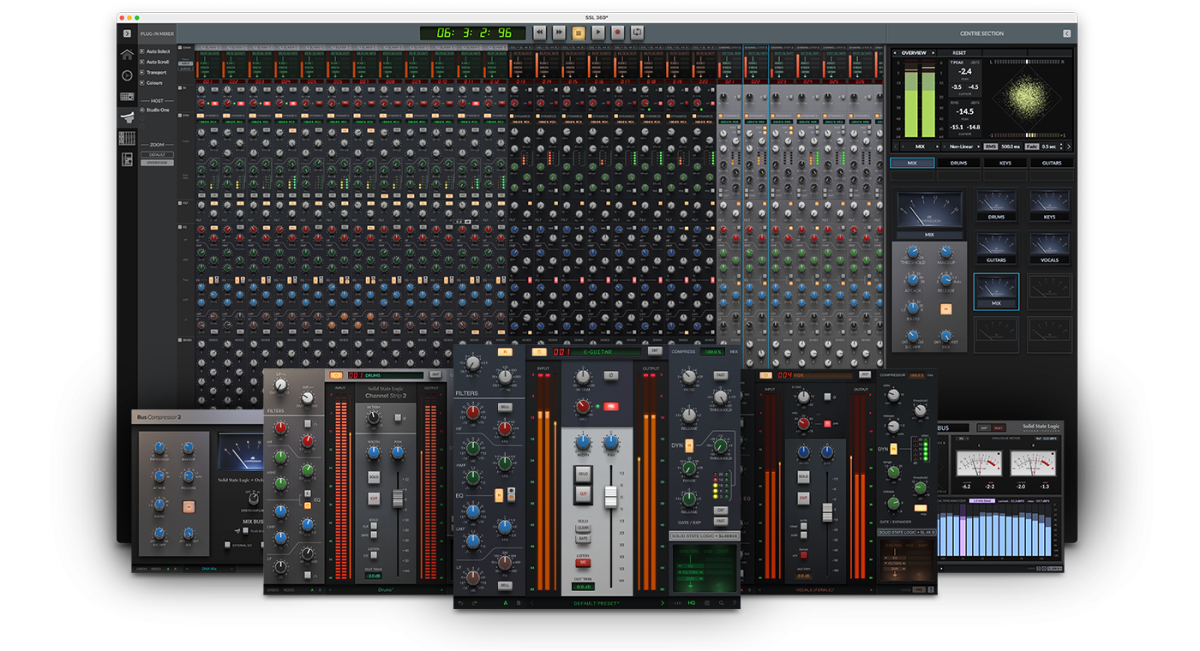

At the heart of every UC1 system is the SSL 360° Plug-in Mixer, a place to view and control all of your Channel Strips and Bus Compressors in one place. The Plug-in Mixer offers a new and exciting way of interacting with the plug-ins, allowing you to adopt a true console-like approach to mixing in-the-box.
UC1 provides dedicated controls of all key Channel Strip 2 plug-in parameters. EQ, Filters, Compressor and Gate/Expander controls offer the same configuration and visual feedback as found on large-format SSL consoles, allowing you to quickly home in on your channel processing sweet spot.
Developed from our digital modelling of the renowned XL 9000K console, SSL Native Channel Strip 2 gives you everything you need to get that radio-ready, modern SSL sound in your DAW. SSL Native plug-ins are the only plug-ins designed by the team of SSL engineers at HQ in Oxford, with exclusive access to the original data sheets and specifications from which the consoles were made. For UC1, we decided to lift the lid once more on the original code, updating Channel Strip to include our proprietary anti-cramping algorithms, which prevent any form of phase and amplitude wrapping. The result, is quite simply the best sounding SSL Channel Strip ever - full of punch, free of distortion and ready for anything you throw at it.
At the heart of UC1 are the Bus Compressor controls that talk directly to SSL Native Bus Compressor 2. The authentic layout and metering feels like you’re controlling a hardware bus comp built into the centre section of an SSL console. With a classic moving-coil gain reduction meter as found on SSL consoles since the 1970’s, it represents the Bus Compressors time constants and gain reduction characteristics perfectly for producers and engineers to know exactly how it’s reacting with their instruments, sub groups and of course mix bus.
Over the course of a session, workflow changes depending on the task in hand. We understand this and that’s why we made sure UC1 offers the tools, visual feedback and total synchronisation between hardware and software required to allow you to work the way you want at any given time. Get hands-on with the UC1 hardware, adjust parameters with the mouse in the individual plug-ins or immerse yourself in the Plug-in Mixer - changes are always synchronised across all software and hardware.
Every detail of UC1 has been implemented to keep you in control and informed of how your mix is reacting to processing. Dedicated front panel encoders accompanied by an on-board hi-res display allow you to move quickly between instances of Channel Strip 2 and Bus Compressor 2 directly from the surface. You can also load presets, as well as alter the Channel Strip process order. All of this feedback and control means, unlike many other controllers, you don't have to look at your DAW when driving UC1.
SSL 360° is the command centre and brains behind UC1. It’s a cross-platform application for Mac and Windows. Installing is quick and easy. Once installed SSL 360° allows you acess to the Plug-in Mixer, a place to view and control of your Channel Strips and Bus Compressors from one place. You can find SSL 360° on the Downloads page - just select ‘SSL UC1’ from the drop-down list.
Full licenses for SSL Native Channel Strip 2 and Bus Compressor 2 plug-ins are included with UC1.
Channel Strip 2 is a a fully-featured Channel Strip, based on digital modelling of the EQ and Dynamics curves from the legendary XL 9000 K SuperAnalogue console. V2 adds SSL’s proprietary anti-cramping algorithms and the ability to trigger the dynamics sidechain externally.
Bus Compressor 2 adds a number of user requests, with additional Ratio, Attack and Release options, the ability to trigger the sidechain externally, as well as x2 and x4 oversampling.
Already a SSL Native Channel Strip and Bus Compressor Plug-in Owner?
SSL Native Channel Strip 2 and Bus Compressor 2 Plug-ins are a free upgrade for existing SSL Native Channel Strip and Bus Compressor owners. Your existing licenses will automatically work with the new plug-ins. Head to the Downloads page to grab the new plug-ins.
Pro Tools®, Logic Pro®, Cubase™ / Nuendo™, Ableton® Live™, Studio One® and REAPER® DAWs are officially supported by UC1 & The Plug-in Mixer. Other DAWs are not tested in the UC1/Plug-in Mixer system at this time but Channel Strip 2 and Bus Compressor 2 plug-ins will work 'standalone' with any AU/VST/VST3 DAW.
The way in which your Channel Strip plug-ins are ordered in the Plug-in Mixer depends on the DAW and in some cases, the version of DAW you’re using.
Plug-in Mixer Order automatically follows the DAW session.
Logic 10.6.1 and above (AUs)
Studio One (VST3)
VST 2 plug-ins do not support automatic ordering, please use VST3s. Do not mix and match VST3 and VST 2 Channel Strip plug-ins in a session.
Plug-in Mixer Order based on plug-in instantiation time
Pro Tools (AAX Native)
Logic 10.6.0 and below (AU)
You can manually re-order the Plug-ins position after they have been inserted, by clicking and dragging on the track name in the Plug-in Mixer.
SSL 360° software must be installed on your Mac or Windows computer in order to use SSL UC1. SSL 360° is available from the Downloads page.
SSL 360°, SSL Native Channel Strip 2 and Bus Compressor - Operating System Requirements
Mac - 10.14 (Mojave), 10.15 (Catalina), 11 Big Sur (Intel), 11.3 Big Sur (M1) fully compatible
*M1 support is only for Rosetta mode only currently.
PC - Windows 10 (64-bit)
SSL Native Channel Strip 2 and Bus Compressor 2 Plug-ins
AAX Native, AU, VST3 and VST Plug-ins
Software Licensing Requirements
SSL User Account – to claim your plug-in licenses
iLok Account – to authorise your plug-in licenses to
Screen Resolution Requirements
1280 × 960
Non Retina Macbook displays are not supported
Computer Hardware Requirements
Intel 3rd Gen Core i5 (or comparable AMD processor) CPU running at 2.4GHz or higher
8GB RAM or more is recommended.
Internet-connection for software updates from SSL 360° application
11.8” x 10.5” x 2.4” / 300 x 266 x 61mm (Width X Depth X Height)
Unboxed 4.6lbs / 2.1kg
Boxed 9.9lbs / 4.5kg
Looking for your free Channel Strip 2 and Bus Compressor 2 licenses for your UC1? Login to your SSL account and click REGISTER PRODUCT to gain access. Watch our tutorial video here for a step-by-step guide if you need help.
Previous versions of SSL 360° software can be found here.
SSL 360° v1.2 Software (Mac)
SSL 360° V1.2 Software (Windows)
Channel Strip 2 Plug-in v1.0.55 (Mac)
Bus Compressor 2 Plug-in v1.0.55 (Mac)
Channel Strip 2 Plug-in v1.0.55 (Windows)
Bus Compressor 2 Plug-in v1.0.55 (Windows)
